10.4 inch Surface Acoustic Wave Touch Screen monitor

Short Description:

· Professional Customization

· Professional structural design

· Industrial-grade

· Super Sensitive Touch

· Integrated with CJtouch SAW touch panel for the ultimate in image quality

Send email to us

Product Detail

Product Tags

Specification:

General
Model	COT104-APF02
Series	Metal-cased Open-frame ,Dust-proof

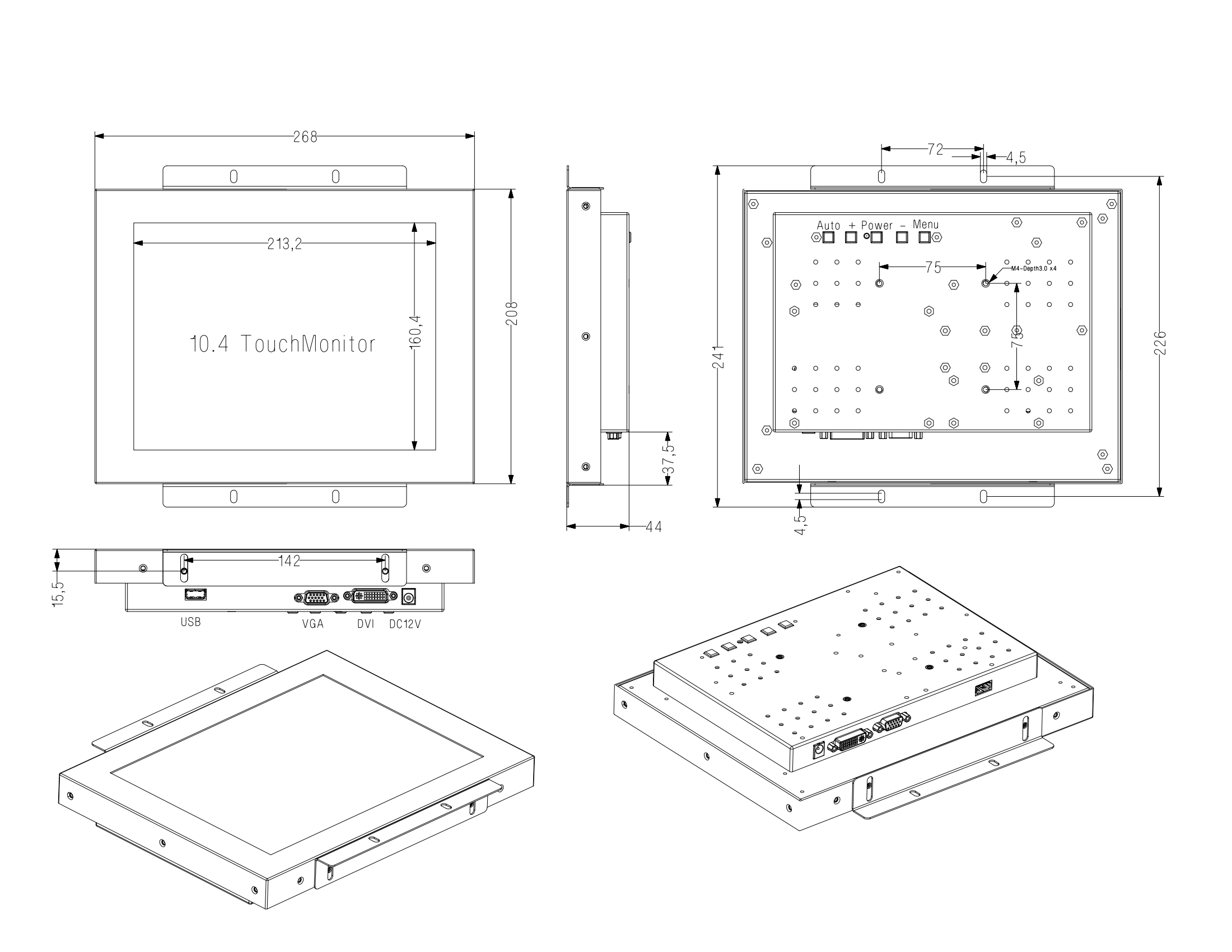

Monitor Dimensions	Width: 268mm Height: 208mm Depth45mm
Weight（N.W/G.W）	2.3Kg /3.2 Kg (Approx.)
Video Input	DVI and VGA
Output	12V/DC/4A
Input	100-240 VAC, 50-60 Hz
MTBF	50000 hr at 25°C
OSD controls	Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Power Supply	Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts at 4 amps max
Mount Interface	1)VESA 75mm 2)Mount bracket, horizontal or vertical
LCD Panel
LCD Type	10.4＂Active matrix TFT-LCD
Active Area(mm)	211.2x158.4 mm
Resolution	800×600@60Hz
Dot Pitch(mm)	0.088×0.264
Nominal Input Voltage VDD	+3.3V(Typ)
Viewing angle	80/80/60/80(Typ.)(CR≥10) (Left/right/Top/Bottom)
Contrast	700:1
Luminance(cd/m2)	400(Typ.)
Response Time	20/10(Tr/Td) ms
Support Color	16.2M/262K colors
Backlight MTBF(hr)	50000
Touch screen
Type	Cjtouch Surface Acoustic Wave(SAW)
Touch System Interface	USB interface (Type B)
Touch Power consumption	+5V@80mA
Environmental Specifications
Operating Temp.	-30～85°C
Storage Temp.	-30～85°C
Operating RH:	5%～95%
Storage RH:	5%～95%

Components:

USB Cable 180cm*1 Pcs,

VGA Cable 180cm*1 Pcs,

Power Cord with Switching Adapter *1 Pcs,

Bracket*2 Pcs.

https://www.cjtouch.com/19-inch-ip65-waterproof-infrared-pc-monitor-touch-screen-product/

Applications:

♦ Information Kiosks
♦ Gaming Machine, Lottery , POS, ATM and Museum Library
♦ Government projects and 4S Shop
♦ Electronic catalogs
♦ Computer-based traning
♦ Eductioin and Hospital Healthcare
♦ Digital Signage Advertisement

♦ Industrial Control System
♦ AV Equip & Rental business
♦ Simulation Application
♦ 3D Visualisation /360 Deg Walkthrough
♦ Interactive touch table
♦ Large Corporates
