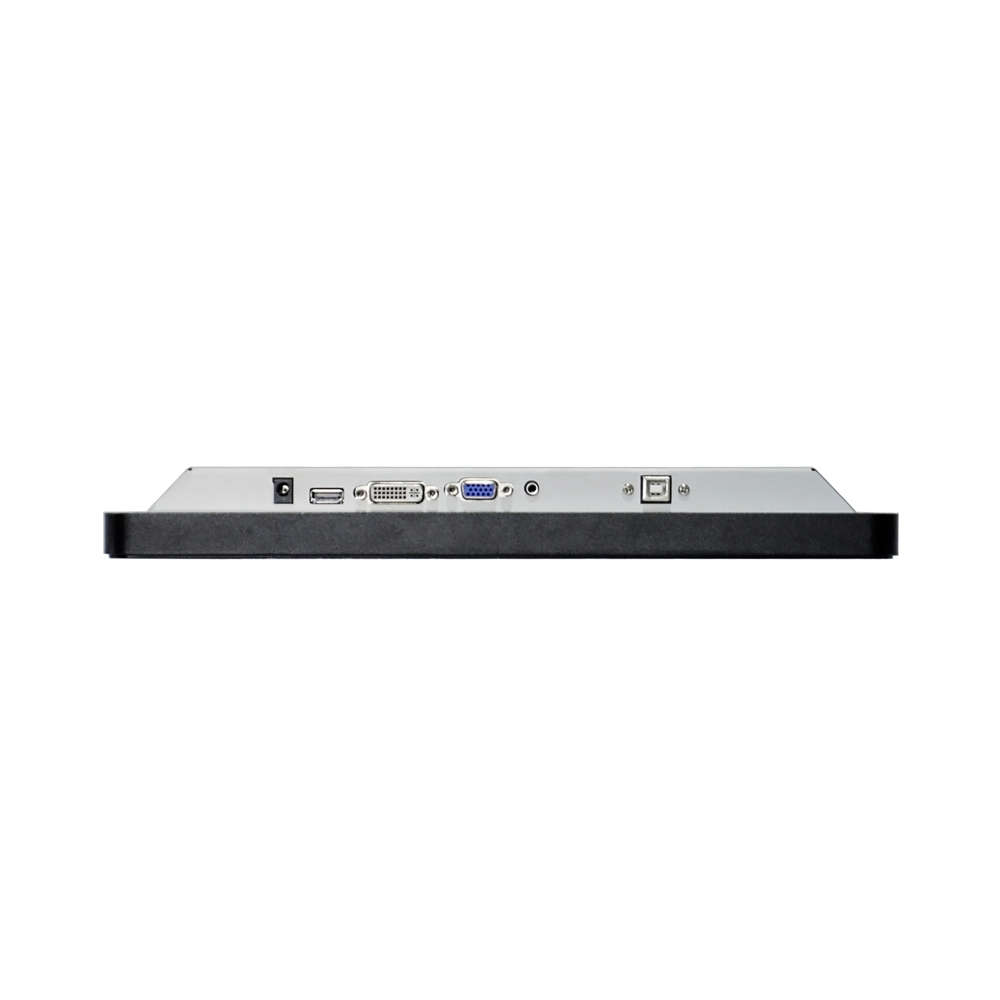

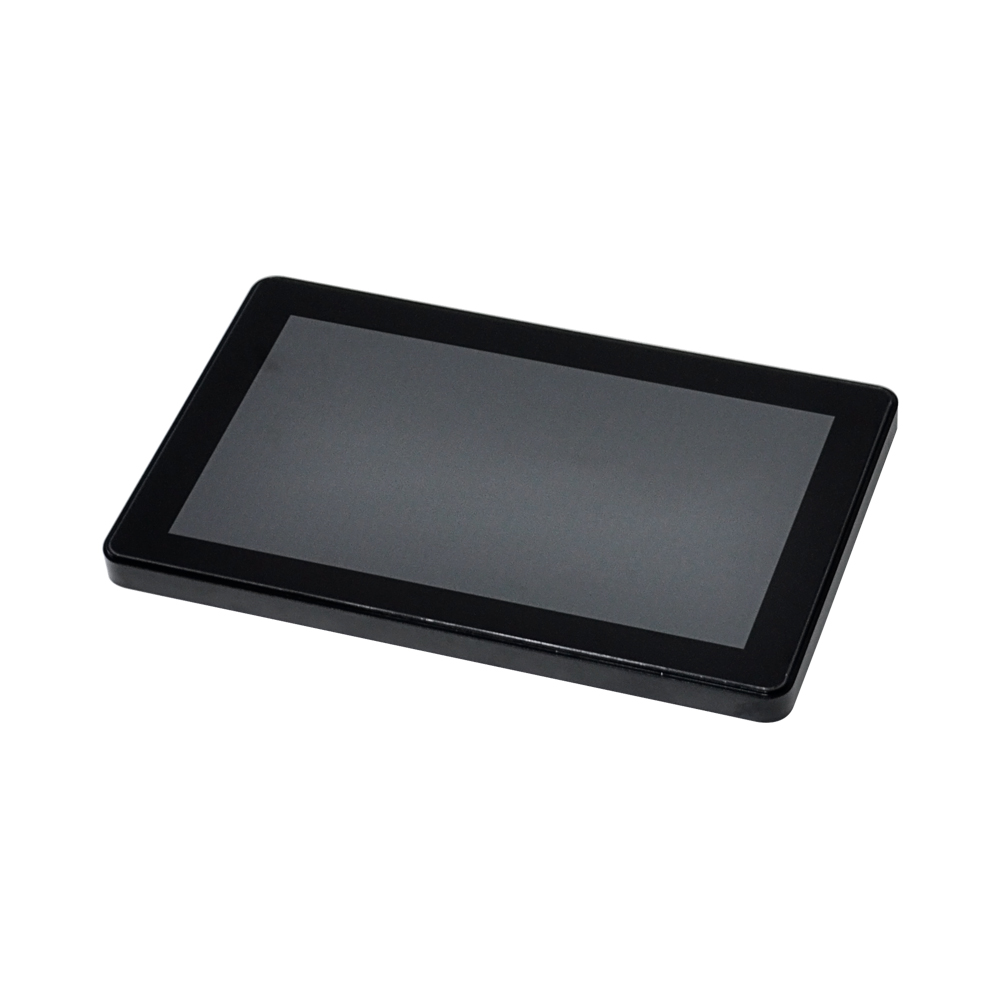

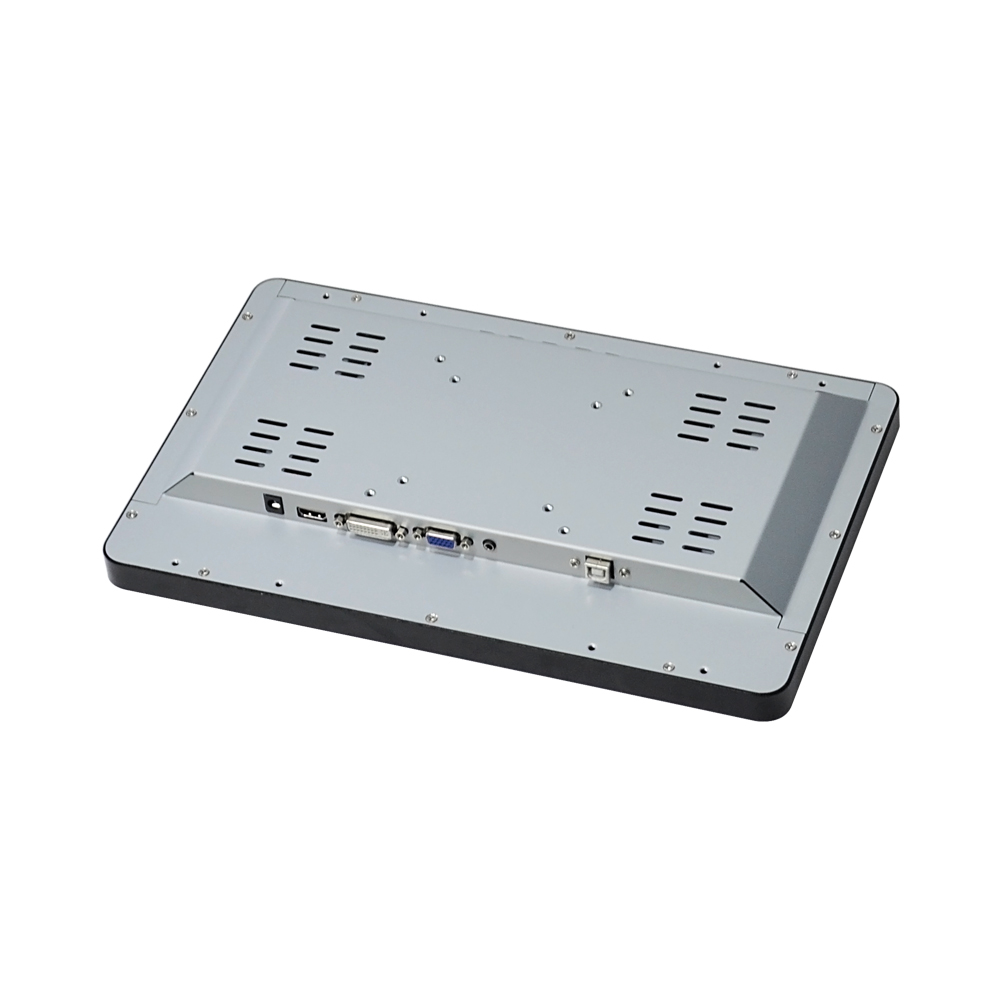

13.3 Inch Capacitive portable touch screen monitor POS System OEM

Short Description:

· Projected capacitive touch screen monitor technology

· High quality LCD display panel with excellent viewing angle

· Touch monitor support 10 points multi touch

· Multilingual on-screen display (OSD)

· VESA hole or mount bracket , horizontal or vertical

· Fully RoHS,FCC certification

· LCD backlight MTBF 30000

Send email to us

Product Detail

Product Tags

Specification:

Display Specifications
Characteristic		Value		Comment
LCD Size/Type		21.5” a-Si TFT-LCD
Aspect Ratio		16:9
Active Area		Horizontal	293.76 mm
		Vertical	165.24 mm
Pixel		Horizontal	0.051
		Vertical	0.153
Panel Resolution		1920(RGB)×1080 (FHD)(60Hz)		Native
Display Color		262K , 100% sRGB		6-bits + Hi-FRC
Contrast Ratio		800:1		Typical
Brightness		300 nits		Typical
Response Time		30 ms		Typical
Viewing Angle		Horizontal	160	Typical
		Vertical	160
Video Signal Input		VGA and DVI and HDMI

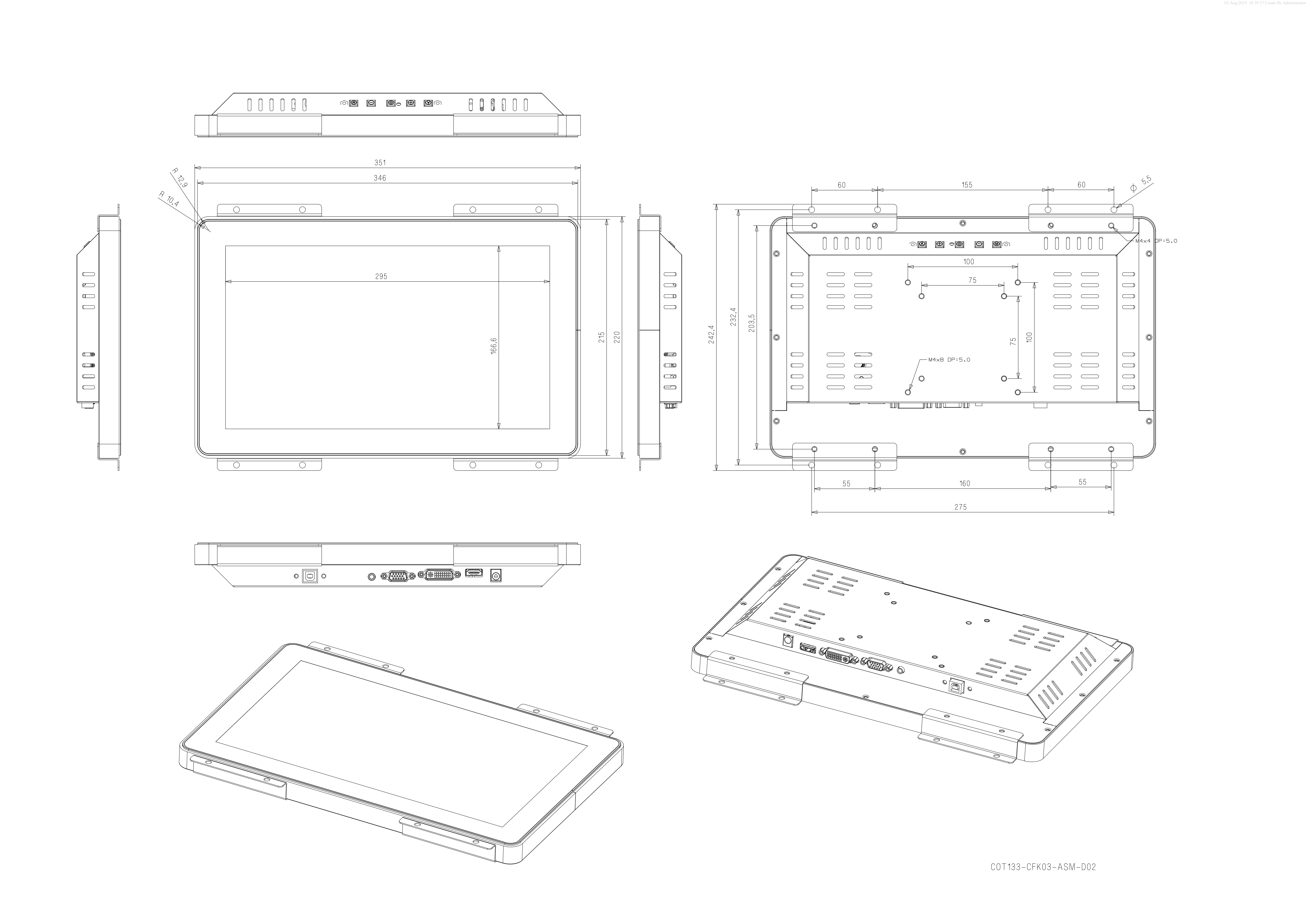

Physical Specifications
Dimensions		Width	351 mm
		Height	220 mm
		Depth	40mm
Electrical Specifications
Power Supply		DC 12V 4A		Power Adapter Included
		100-240 VAC, 50-60 Hz		Plug Input
Power Consumption		Operating	38 W	Typical
		Sleep	3 W
		Off	1 W
Touch Screen Specifications
Touch Technology			Project Capacitive Touch Screen 10 Touch Point
Touch Interface			USB (Type B)
OS Supported	Plug and Play		Windows All (HID) ,Linux (HID) (Android Option)
Driver			Driver Offered
Environmental Specifications
Condition			Specification
Temperature		Operating	-10°C ~+ 50°C
		Storage	-20°C ~ +70°C
Humidity		Operating	20% ~ 80%
		Storage	10% ~ 90%
MTBF			30000 Hrs at 25°C

Components:

USB Cable 180cm*1 Pcs,

VGA Cable 180cm*1 Pcs,

Power Cord with Switching Adapter *1 Pcs,

Bracket*2 Pcs.

https://www.cjtouch.com/32-inch-touch-screen-monitor-with-projected-capacitive-touch-screen-product/

Applications:

♦ Information Kiosks
♦ Gaming Machine, Lottery , POS, ATM and Museum Library
♦ Government projects and 4S Shop
♦ Electronic catalogs
♦ Computer-based traning
♦ Eductioin and Hospital Healthcare
♦ Digital Signage Advertisement

♦ Industrial Control System
♦ AV Equip & Rental business
♦ Simulation Application
♦ 3D Visualisation /360 Deg Walkthrough
♦ Interactive touch table
♦ Large Corporates
