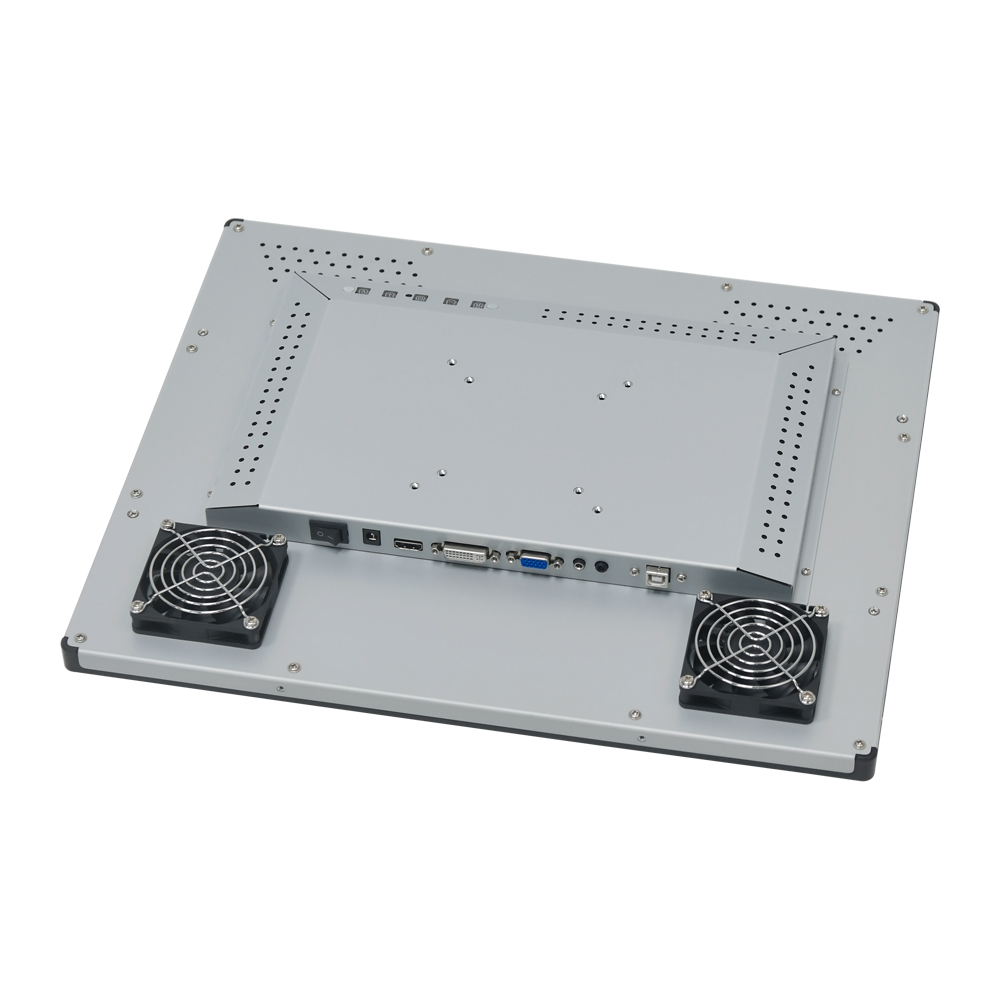

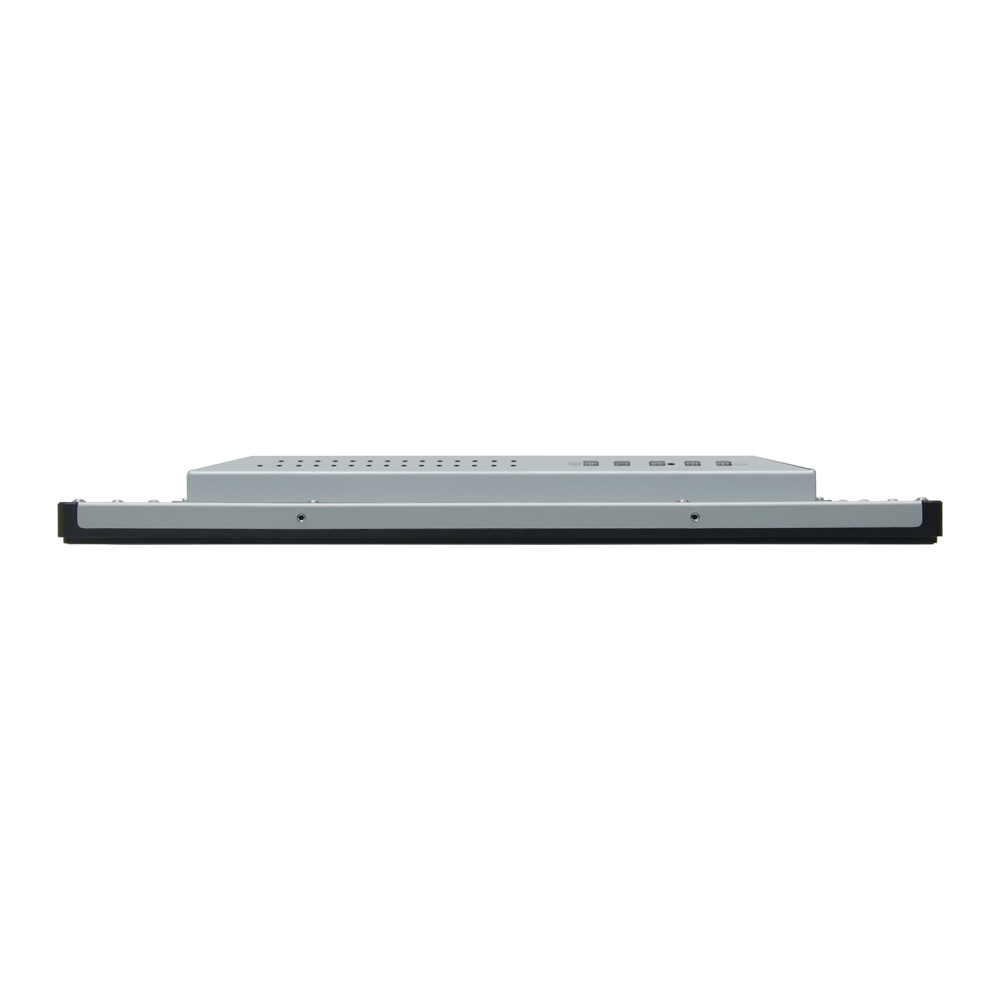

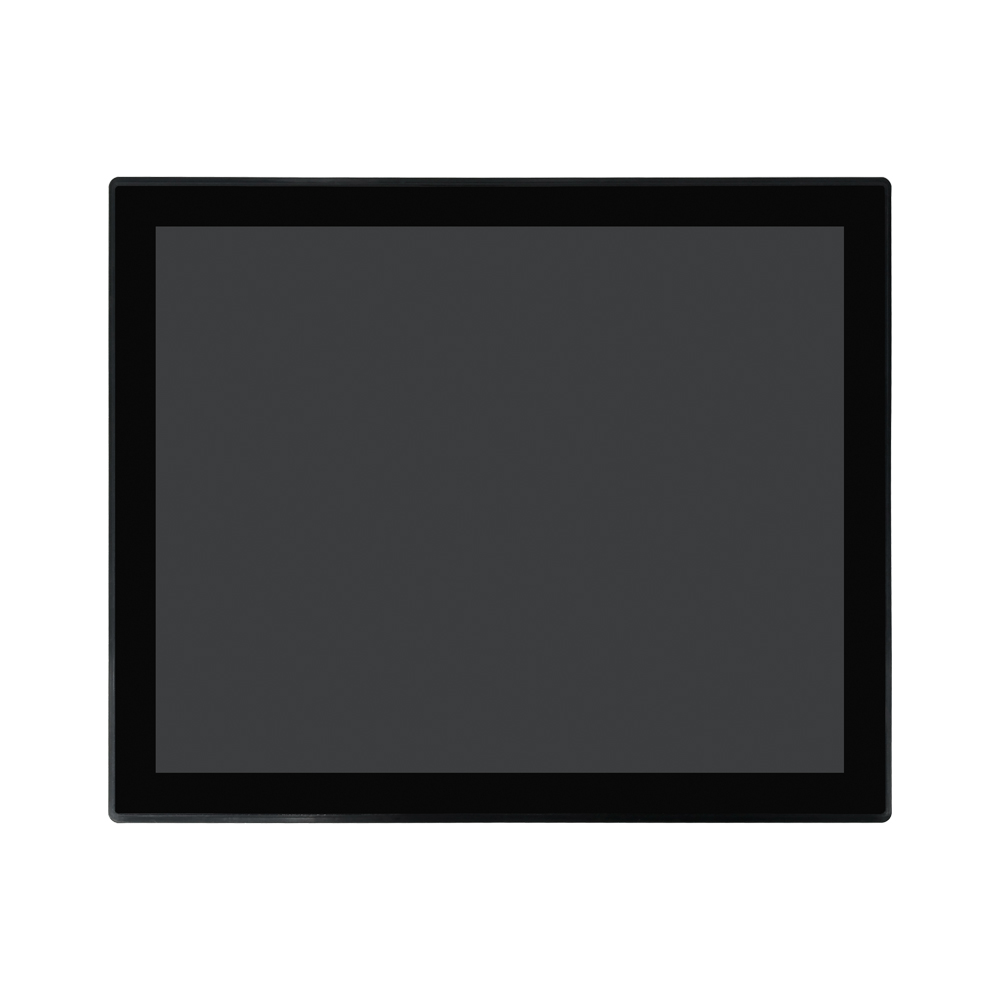

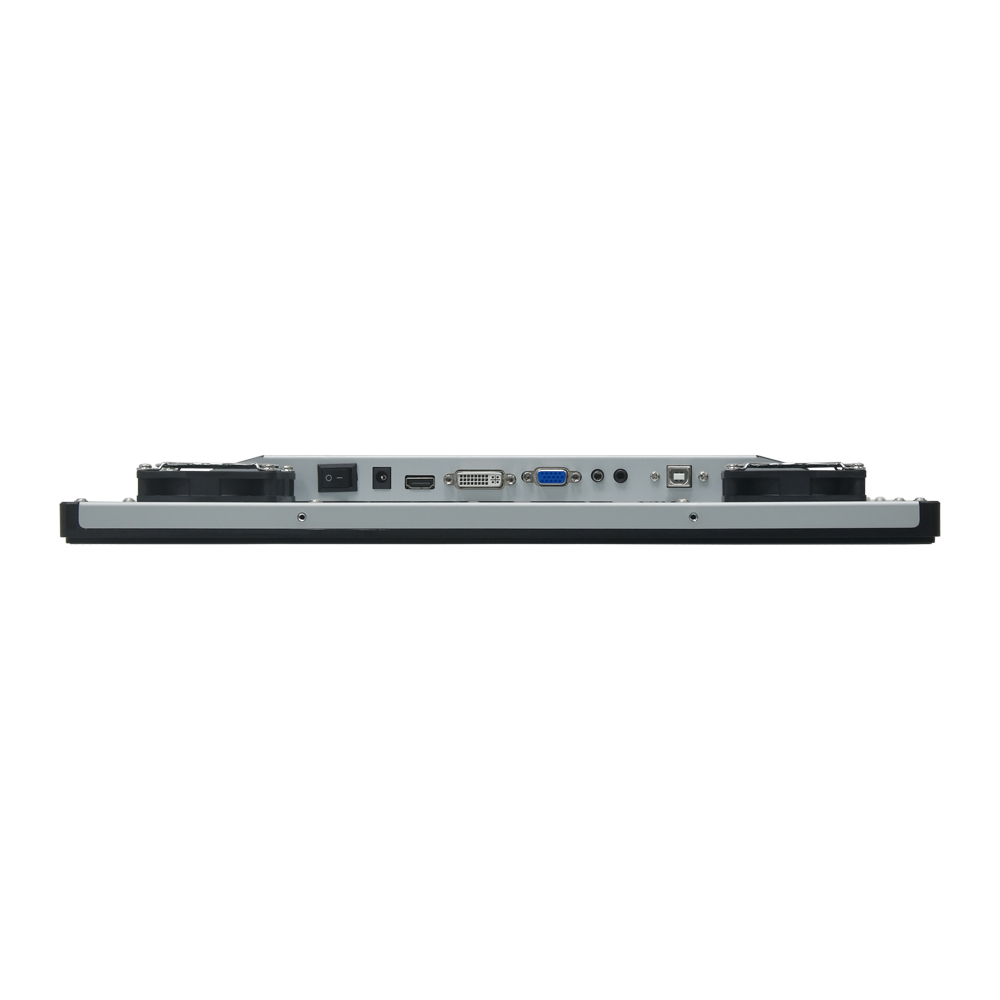

19 Inch Supported Arm System Control Panel Monitor Capacitive Touch Screen Display IP65 Waterproof and Dustproof LCD Display Cantilever Panel Monitor

Short Description:

  • Touch Monitor with Fan
  • Fast heat dissipation for high-temperature environments
  • Multi-touch capable
  • Can be wall-mounted on a stand
  • Can be moved
  • Outdoor high brightness customization
  • Support Windows/Linux/Android etc. operating system selection

Product Detail

Product Tags

19 inch PCAP Touch Monitor specification :

Touch System Interface USB interface
Video Input VGA and DVI and HDMI
Active Area(mm) 376.320(H)×301.060(V)
Resolution 1280×1024@75Hz
Dot Pitch(mm) 0.294×0.294
Nominal Input Voltage VDD +5.0V(Typ)
Viewing angle (v/h) 80°/85°
Contrast 1000:1
Luminance(cd/m2) 250
Response Time(Rising/Falling) 3.6s/1.4s
Support Color 16.7M colors
Output DC 12V /4A
Input 100-240 VAC, 50-60 Hz
MTBF 30000 hr at 25°C
Operating Temp. 0~50°C
Storage Temp. -20~60°C
Operating RH: 20%~80%
Storage RH: 10%~90%
MTBF 50000 hr at 25°C
OSD controls Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Power Supply Type: External brick
Input (line) voltage: 100-240 VAC, 50-60 Hz
Output voltage/current: 12 volts at 4 amps max
Mount Interface 1)VESA 75mm and 100mm

2)Mount bracket, horizontal or vertical

Touch Monitor with Fan
Fast heat dissipation for high-temperature environments
Multi-touch capable
Can be wall-mounted on a stand
Can be moved
Outdoor high brightness customization
Support Windows/Linux/Android etc. operating system selection
Touch Monitor with Fan
Fast heat dissipation for high-temperature environments
Multi-touch capable
Can be wall-mounted on a stand
Can be moved
Outdoor high brightness customization
Support Windows/Linux/Android etc. operating system selection
Touch Monitor with Fan
Fast heat dissipation for high-temperature environments
Multi-touch capable
Can be wall-mounted on a stand
Can be moved
Outdoor high brightness customization
Support Windows/Linux/Android etc. operating system selection
Touch Monitor with Fan
Fast heat dissipation for high-temperature environments
Multi-touch capable
Can be wall-mounted on a stand
Can be moved
Outdoor high brightness customization
Support Windows/Linux/Android etc. operating system selection

Applications:

https://www.cjtouch.com/

♦ Information Kiosks
♦ Gaming Machine, Lottery , POS, ATM and Museum Library
♦ Government projects and 4S Shop
♦ Electronic catalogs
♦ Computer-based traning
♦ Eductioin and Hospital Healthcare
♦ Digital Signage Advertisement

♦ Industrial Control System
♦ AV Equip & Rental business
♦ Simulation Application
♦ 3D Visualisation /360 Deg Walkthrough
♦ Interactive touch table
♦ Large Corporates

https://www.cjtouch.com/
https://www.cjtouch.com/
https://www.cjtouch.com/

Production environment

Production processProduction process

Company Profile

Founded in 2011. By putting the customer’s interest first, CJTOUCH consistently offers exceptional customer experience and satisfaction through its wide variety of touch technologies and solutions including All-in-One touch systems.

CJTOUCH makes available advanced touch technology at a sensible price for its clientele. CJTOUCH further adds unbeatable value through customization to meet particular needs when required. The versatility of CJTOUCH’s touch products is evident from their presence in varying industries such as Gaming, Kiosks, POS, Banking, HMI, Healthcare and Public Transportation.
