21.5 inch i3/i5/i7 all in one pc with touch screen
Specification:
| Total parameter | Diagonal Size | 21.5'' diagonal, Active matrix TFT LCD (LED) |
| Aspect Ratio | 16:9 | |
| Enclosure Color | Black | |
| Speakers | Two 5W internal speakers | |

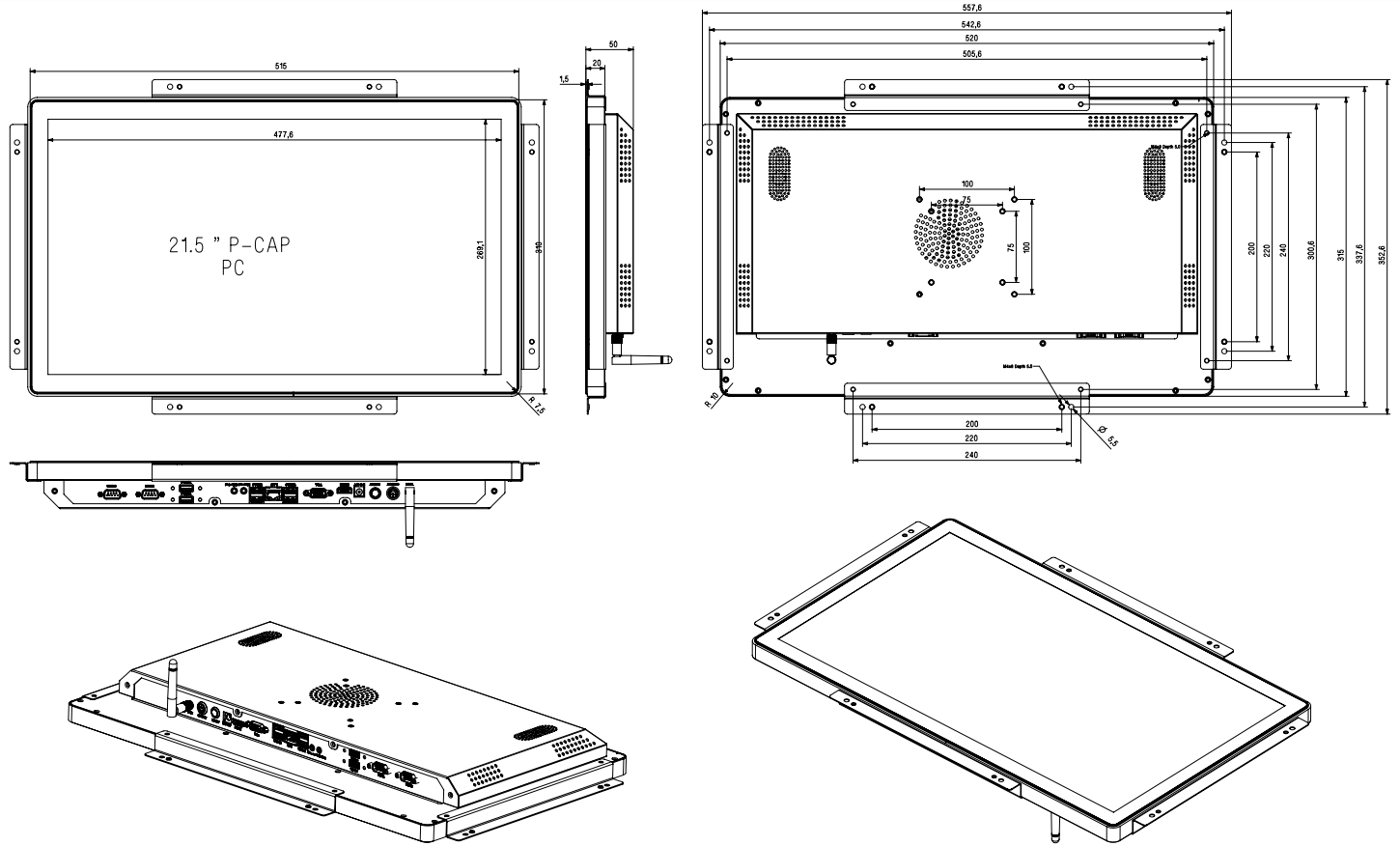

| Mechanical | Unit Size (WxHxD mm) | 520x315x50 |
| VESA Holes (mm) | 75x75,100x100 | |
|
Computer |
CPU |
Intel Core I3 I3-4120U |
|
Mother board |
YY B430 | |
|
Memory (RAM) |
8GB DDR3L SODIMM |
|
| Storage |
128GB SSD MSATA |
|
| USB |
2 x USB 3.0, 4 x USB 2.0 |
|
| LAN |
10/100/1000 Ethernet ,support PXE boot & remote wake up |
|
| Wi-Fi | Wi-Fi 802.11 a/b/g/n/ac | |
| BIOS | AMI | |
| Languages | Windows 7 - 35 Language groups | |
| OS | No OS
Windows 7 Windows 10* |
|
|
LCD Specification |
Active Area(mm) |
476.64(H)×268.11(V) |
|
Resolution |
1920x1080@60Hz |
|
|
Dot Pitch(mm) |
0.24825×0.24825 |
|
|
Viewing angle(Typ.)(CR≥10) |
89°/89°/89°/89° |
|
|
Contrast (Typ.) (TM) |
3000:1 |
|
|
Brightness (typical) |
LCD Panel: 250 nits PCAP: 220 nits |
|
|
Response Time (Typ.)(Tr/Td) |
13/5ms |
|
|
Support Color |
16.7M , 72% (CIE1931) |
|
|
Backlight MTBF(hr) |
30000 |
|
|
Touchscreen Specification |
Type |
Cjtouch Projected Capacitive(PCAP) touch screen |
|
Multi touch |
10 points touch |
|
| Power |
Power Consumption (W) |
DC 12V /5A ,DC head 5.0x2.5MM |
|
Input Voltage |
100-240 VAC, 50-60 Hz |
|
|
MTBF |
50000 hr at 25°C |
|
|
Environment |
Operating Temp. |
0～50°C |
|
Storage Temp. |
-20～60°C |
|
|
Operating RH: |
20%～80% |
|
|
Storage RH: |
10%～90% |
|
| Accessories | Included | 1 x Power Adapter,1 x Power Cable, 2 x brackets |
| Optional | Wall Mount, Floor Stand/Trolley, Ceiling Mount, Table Stand | |
| Warranty | Warranty Period | 1 Year Free Warranty |
| Technical Support | Lifetime |
Components:
Power Cord with Switching Adapter *1 Pcs
Bracket*2 Pcs
Applications:
♦ Information Kiosks
♦ Gaming Machine, Lottery , POS, ATM and Museum Library
♦ Government projects and 4S Shop
♦ Electronic catalogs
♦ Computer-based traning
♦ Eductioin and Hospital Healthcare
♦ Digital Signage Advertisement
♦ Industrial Control System
♦ AV Equip & Rental business
♦ Simulation Application
♦ 3D Visualisation /360 Deg Walkthrough
♦ Interactive touch table
♦ Large Corporates
