32 inch i3/i5/i7 touch screen all in one computers with OPS

Short Description:

CJTOUCH touchcomputers (All-in-one) is available in 10.1” / 10.4” / 12.1” / 15” / 15.6” / 17” / 18.5” / 19” / 21.5” / 23.8” / 27” / 32” / 43” / 49” / 55” / 65”

Wide Working temperature option

4 COM optional, 6USB optional

RS232/RS422/RS485 optional

J1900 / I3 / I5 / I7/ Android CPU Optional

• 2 / 4 /8 / 16 /32 GB ect RAM Optional

• 32/64/128/256/512 ect SSD Optional

• Support any type of OEM/ODM service


Product Detail

Product Tags

Specification:

Computer

CPU

I5 -7200U

Mother board

OPS-9900

RAM

4GB

SSD

128GB

USB

4 x USB 2.0

LAN

10/100/1000 Ethernet

Wi-Fi

Yes

OS

Windows7

LCD Specification

Active Area(mm)

698.4(H)×392.85(V)

Resolution

1920x1080@60Hz

Dot Pitch(mm)

0.36375×0.36375

Nominal Input Voltage VDD

+5.0V(Typ)

Viewing angle (v/h)

Typical 89/89/89/89 (Min.)(CR≥10)

Contrast

1100:1

Luminance(cd/m2)

400

Response Time(Rising/Falling)

5s/20s

Support Color

16.7M colors

Backlight MTBF(hr)

30000

Touchscreen Specification

Type

Cjtouch Projected Capacitive touch screen

Multi touch

10 points touch

Touch Life Cycle

10 millions

Touch Response time

8ms

Touch System Interface

USB interface

Power consumption

+5V@80mA

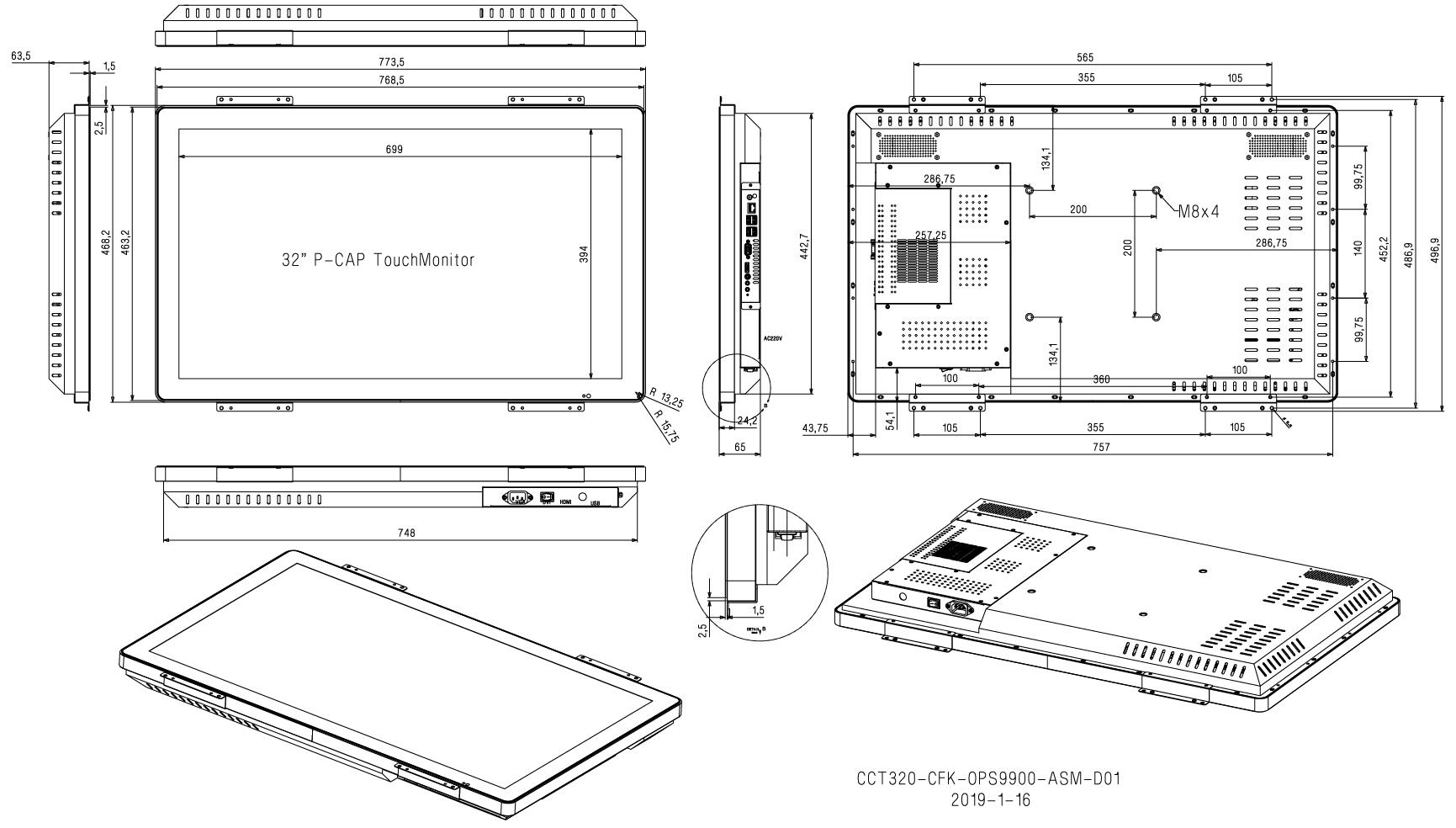

Mechanical Unit Size (WxHxD mm)   773.5x468.2x65
VESA Holes (mm) 200x200
Audio Speaker Type 5W, 8Ω (x2)
Power

Power Consumption (W)

AC220V

Input Voltage

100-240 VAC, 50-60 Hz

MTBF

30000 hr at 25°C

Environment

Operating Temp.

0~50°C

Storage Temp.

-20~60°C

Operating RH:

20%~80%

Storage RH:

10%~90%

Accessories Included Power Cable, brackets x 2(4)
Optional Wall Mount, Floor Stand/Trolley, Ceiling Mount, Table Stand
Warranty Warranty Period 1 Year Free Warranty
Technical Support   Lifetime
3
4
7

Components:

CCT320-CFK-OPS9900-I5

Power Cord with Switching Adapter *1 Pcs

Bracket*2 Pcs

附件 component

Applications:

https://www.cjtouch.com/

♦ Information Kiosks
♦ Gaming Machine, Lottery , POS, ATM and Museum Library
♦ Government projects and 4S Shop
♦ Electronic catalogs
♦ Computer-based traning
♦ Eductioin and Hospital Healthcare
♦ Digital Signage Advertisement

♦ Industrial Control System
♦ AV Equip & Rental business
♦ Simulation Application
♦ 3D Visualisation /360 Deg Walkthrough
♦ Interactive touch table
♦ Large Corporates

https://www.cjtouch.com/
https://www.cjtouch.com/
https://www.cjtouch.com/

Company Profile

CJTOUCH even offers up its touch products for ‘adoption’, empowering customers who have proudly branded CJTOUCH’s touch products as their own (OEM), thus, increasing their corporate stature and extending their market reach.
