43″ C-Type curved touch screen monitor with LED lighting
Specification:
| Product name | 43 inch 4K curved touch monitor with LED light | |||||||
| Model | UD-43WST-L | |||||||
| LCD panel | Active area | 963.6(H)×557.9(V)mm | ||||||
| Display ratio | 16:9 | |||||||
| Backlight | LED | |||||||
| Backlight MTBF(hr) | Over 50000 | |||||||
| Resolution | 3840×2160 | |||||||
| Luminance | 300cd/m2 | |||||||
| Contrast | 1300:1 | |||||||
| Response time | 8ms | |||||||
| Dot pitch | 0.2451(H)×0.2451(V)mm | |||||||
| Support color | 16.7M | |||||||
| Viewing angle | Horizontal/Vertica:178°/178° | |||||||
| PCAP
touch screen |
Touch technology | Projected Capacitive Technology G+G | ||||||
| Response time | <5ms | |||||||
| Touch points | 10 points touch | |||||||
| Touch effective
recognition |
>1.5mm | |||||||
| Scanning frequency | 200HZ | |||||||
| Scanning accuracy | 4096 x 4096 | |||||||
| Communication mode | Full speed USB2.0，USB3.0 | |||||||
| Theoretical clicks | More than 50 million | |||||||
| Working current/voltage | 180Ma/DC+5V+/-5% | |||||||
| Anti-light interference | Normal when the strong light of sunlight, incandescent lamp, fluorescent lamp etc. changes | |||||||
| Touch data
output method |
Coordinate output | |||||||
| Surface hardness | Physically toughened, Mohs grade 7 explosion-proof glass | |||||||
| Operating system | Android/Windows | |||||||
| Driver | Drive free, plug and play | |||||||

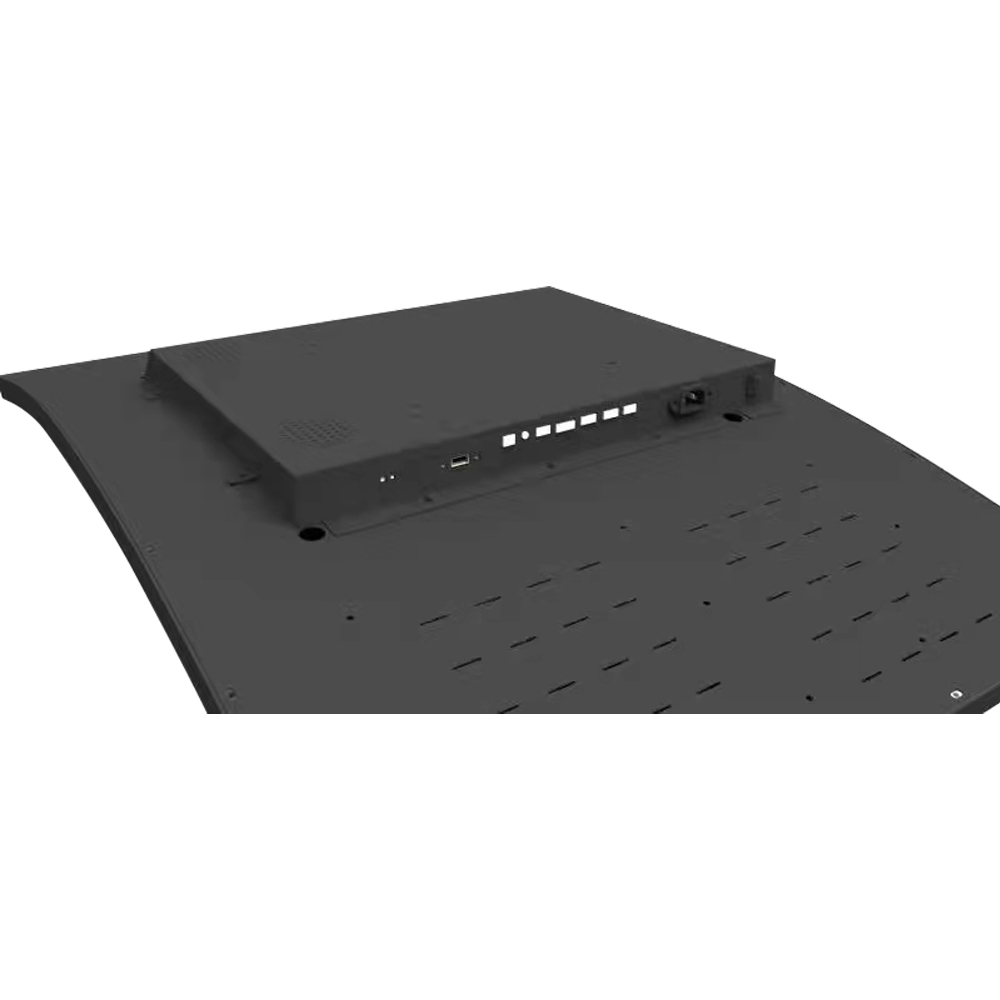

| Other interface | HDMI1.4 Input | 1 | HDMI2.0 Input | 1 | Touch USB | 1 | ||
| Headphone output | 1 | AC | 1 | RS232 | 1 | |||
| Power supply | Working voltage | AC220V 50/60Hz | ||||||
| Max power dissipation | 155W | |||||||
| Power consumption | 0.8W | |||||||
| Environment | Temperature | 0～40degrees Celsius | ||||||
| Humidity | 10～90%RH | |||||||

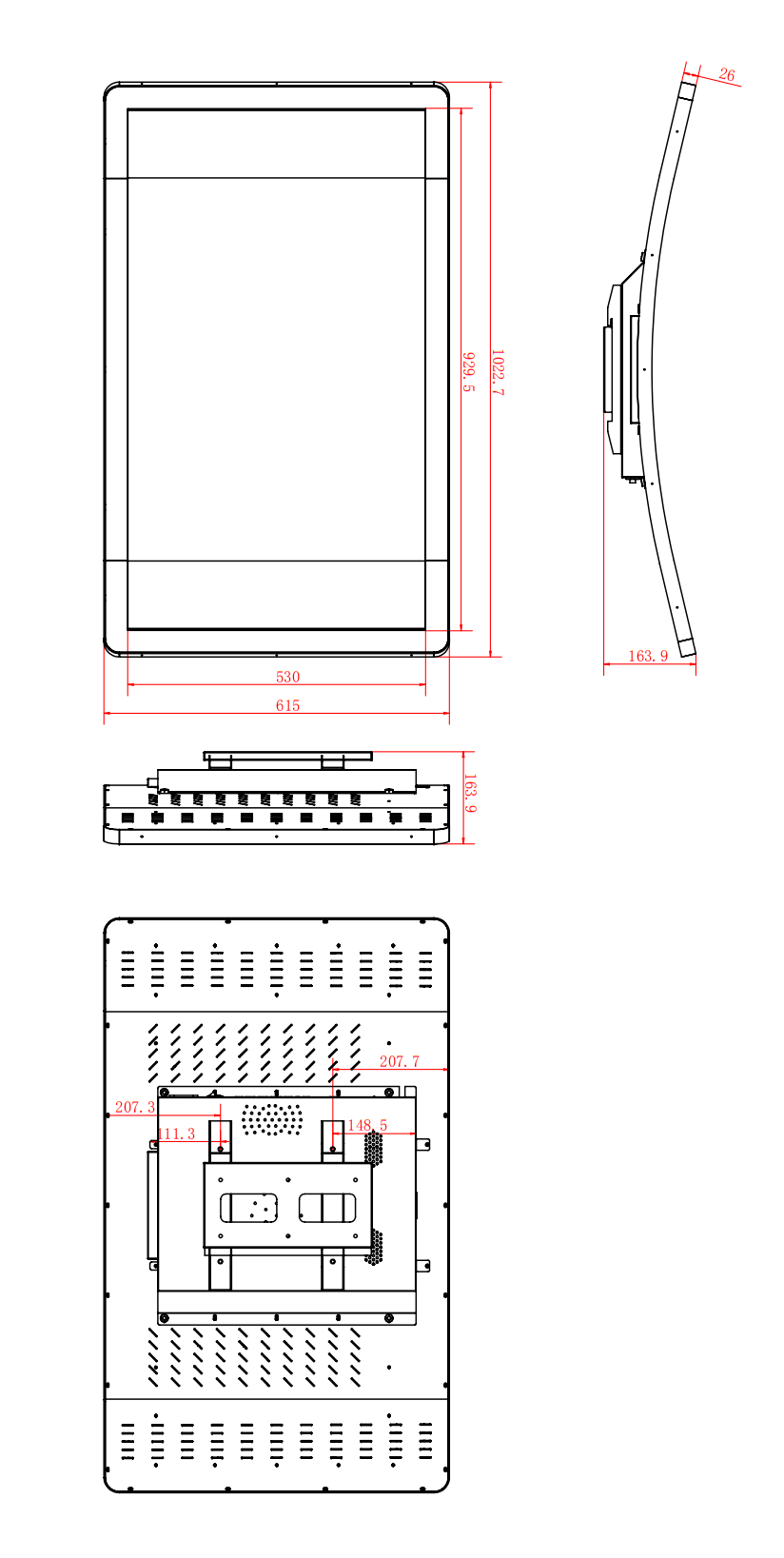

| Other | Product size | 1022.7*615*163.9mm | ||||||
| Package size | 1100*705*245mm | |||||||
| Net weight | 24KG | Gross weight | 27KG | |||||
| Accessory | Power cable*1, HDMI*1,USB cable*1,Remote*1 | |||||||
Components:
USB Cable 180cm*1 Pcs,
VGA Cable 180cm*1 Pcs,
Power Cord with Switching Adapter *1 Pcs,
Bracket*2 Pcs.
Applications:

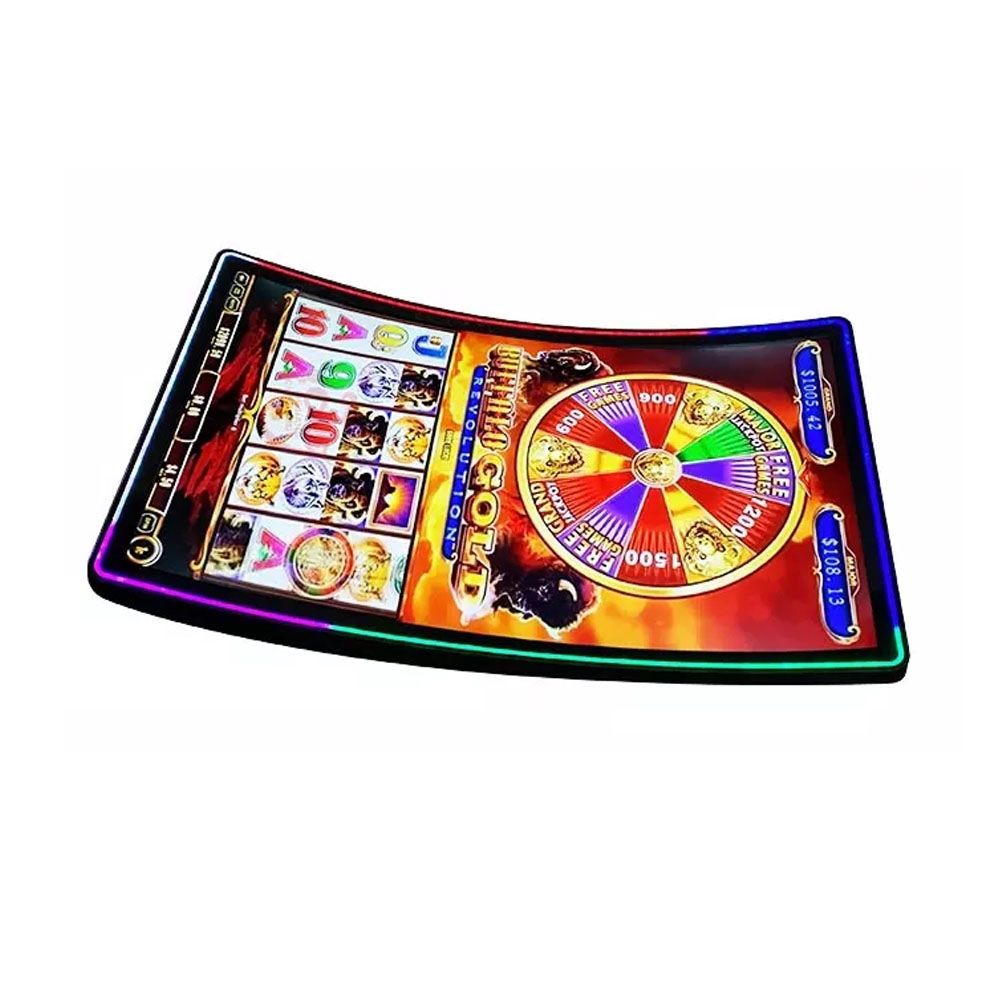

♦ Casino Slot Machines
♦ Information kiosks
♦ Digital Advertising
♦ Way-finders and Digital Assistants
♦ Medical
♦ Gaming
FAQ
1. What is the MOQ?
A: MOQ is 1 pcs.
Sample is available for customer to check the quality before bulk order.
2. Do you accept OEM?
Yes,OEM and ODM is warmly welcomed.
It is our company’s strength,we can customize the LCD monitor so that can fully meet customers’ requirements.
3. What payment methods does your company accept?
T/T,Western Union,Paypal and L/C .
4. What’s the delivery time?
Sample:2-7 working days.bulk order 7-25 working days.
For customized products,delivery time is negotiable.
We will try our best to meet your delivery time.
