CJTouch 23.8 Inch Open Frame Cheap Monitor Multi-Touch Capacitive Lcd Touch Screen Display Touchscreen For Kiosk

Short Description:

Product Details
*Four Rounded Angle, Elegant Design.
*Support 7*24*365 continously working
*Easy Istallation and Maintainence.
*Different can be customize.

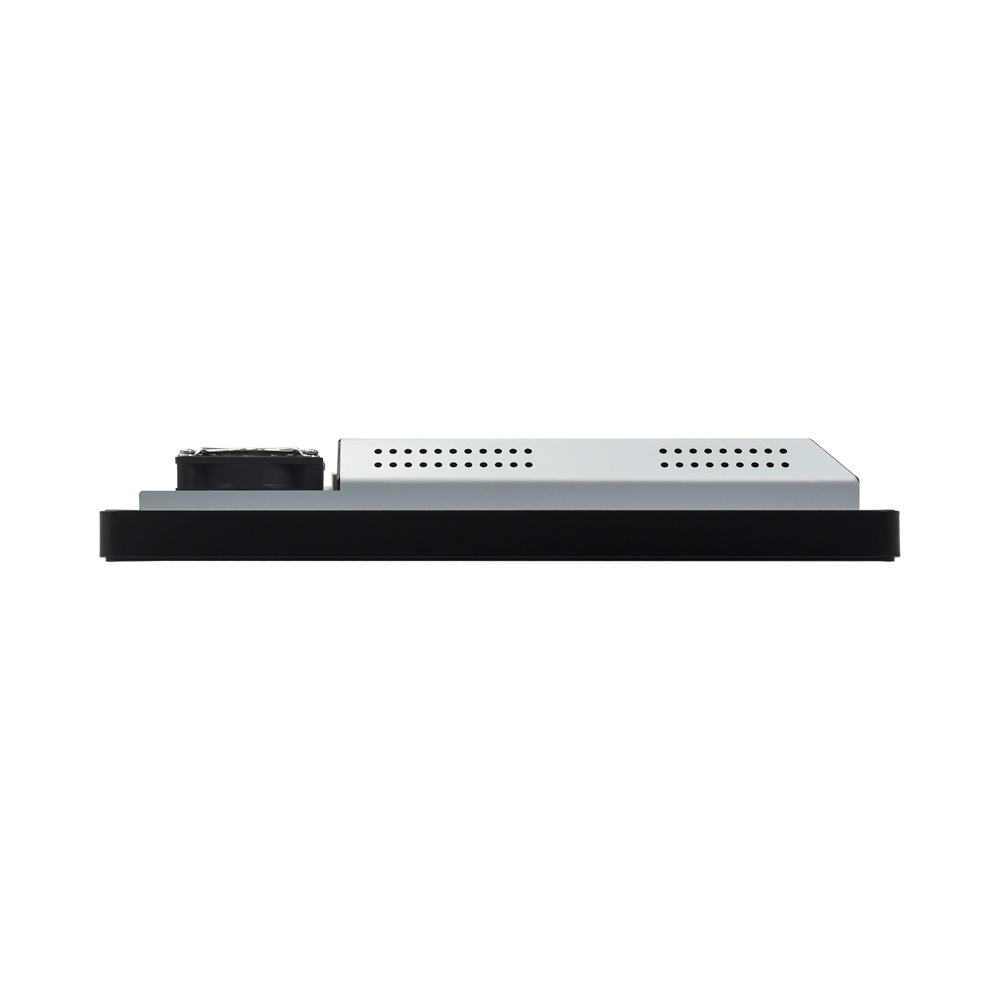

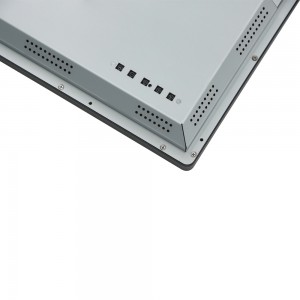

*Vent design for heat dissipation.

Product Detail

Product Tags

Specification:

General
Model	COT215-CFK03
Series	Water-proof and Flat
Monitor Dimensions	Width: 515mm Height: 310mm Depth: 44.9mm
Weight(N.W/G.W)	5Kg / 9Kg (Approx.)
LCD Type	21.5”SXGA Color TFT-LCD

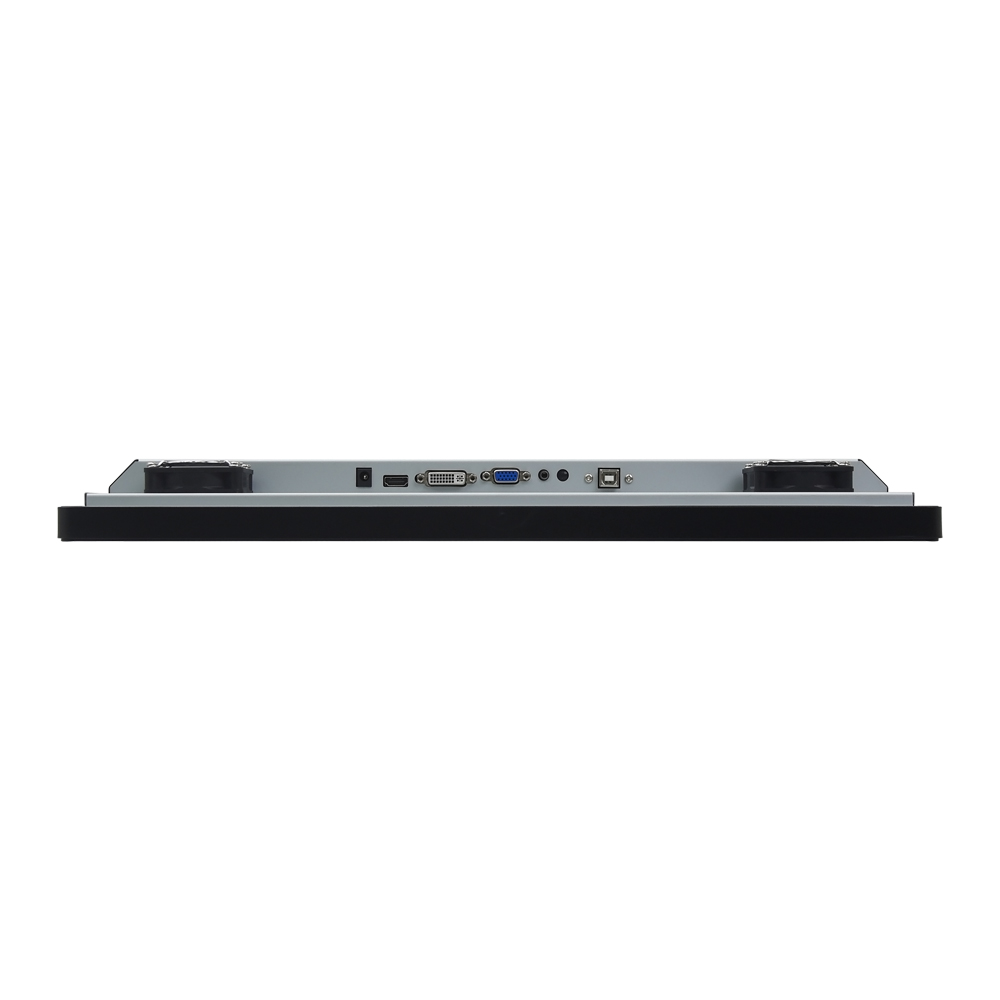

Video Input	VGA HDMI and DVI
OSD controls	Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Power Supply	Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts at 4 amps max
Mount Interface	1)VESA 75mm and 100mm 2)Mount bracket, horizontal or vertical
LCD Specification
Active Area(mm)	476.64(H)×268.11(V)
Resolution	1920x1080@60Hz
Dot Pitch(mm)	0.24825×0.24825
Nominal Input Voltage VDD	+5.0V(Typ)
Viewing angle (v/h)	89°/89°
Contrast	3000:1
Luminance(cd/m2)	250
Response Time(Rising/Falling)	5s/5s
Support Color	16.7M colors
Backlight MTBF(hr)	30000
Touchscreen Specification
Type	Cjtouch project capacitive touch screen
Resolution	4096*4096
Light Transmission	92%
Multi touch	10 points touch
Touch Response time	8ms
Touch System Interface	USB interface
Power consumption	+5V@80mA
External AC Power Adapter
Output	DC 12V /4A
Input	100-240 VAC, 50-60 Hz
MTBF	50000 hr at 25°C
Environment
Operating Temp.	0~50°C
Storage Temp.	-20~60°C
Operating RH:	20%~80%
Storage RH:	10%~90%

https://www.cjtouch.com/cjtouch-23-8-inch-open-frame-cheap-monitor-multi-touch-capacitive-lcd-touch-screen-display-touchscreen-for-kiosk-product/

Components:

USB Cable 180cm*1 Pcs,

VGA Cable 180cm*1 Pcs,

Power Cord with Switching Adapter *1 Pcs,

Bracket*2 Pcs.

https://www.cjtouch.com/32-inch-touch-screen-monitor-with-projected-capacitive-touch-screen-product/

Applications:

♦ Information Kiosks
♦ Gaming Machine, Lottery , POS, ATM and Museum Library
♦ Government projects and 4S Shop
♦ Electronic catalogs
♦ Computer-based traning
♦ Eductioin and Hospital Healthcare
♦ Digital Signage Advertisement

♦ Industrial Control System
♦ AV Equip & Rental business
♦ Simulation Application
♦ 3D Visualisation /360 Deg Walkthrough
♦ Interactive touch table
♦ Large Corporates
