In Wall 15.6″ Industrial Tablet Touch All In One Panel Pc Monitor Touch Screen Industrial Tablet Computer Embedded Pc Featured Image
  • In Wall 15.6″ Industrial Tablet Touch All In One Panel Pc Monitor Touch Screen Industrial Tablet Computer Embedded Pc
  • In Wall 15.6″ Industrial Tablet Touch All In One Panel Pc Monitor Touch Screen Industrial Tablet Computer Embedded Pc
  • In Wall 15.6″ Industrial Tablet Touch All In One Panel Pc Monitor Touch Screen Industrial Tablet Computer Embedded Pc
  • In Wall 15.6″ Industrial Tablet Touch All In One Panel Pc Monitor Touch Screen Industrial Tablet Computer Embedded Pc

In Wall 15.6″ Industrial Tablet Touch All In One Panel Pc Monitor Touch Screen Industrial Tablet Computer Embedded Pc

Short Description:

15.6 17 21.5 inch fanless Panel PC front side mounted AIO PC with Rk3288 3399 3566

CCT156-CJA and+roid is a series of smart fanless panel PC from front side mounted. Using And  roid Rk3288/3399/3566 processors.

It adopts 17.0-inch 1280*1024 resolution high-brightness TFT LCD, supports full-plane 5-wire resistive touch screen, and can choose surface projected multi-touch capacitive screen.

This product has rich and comprehensive I/O interfaces, power supply, supports DC 12V DC input, suitable for intelligent MES system ,equipment management HMI and Digital Signage.


Product Detail

Product Tags

Applications:

https://www.cjtouch.com/

♦ Information Kiosks
♦ Gaming Machine, Lottery , POS, ATM and Museum Library
♦ Government projects and 4S Shop
♦ Electronic catalogs
♦ Computer-based traning
♦ Eductioin and Hospital Healthcare
♦ Digital Signage Advertisement

♦ Industrial Control System
♦ AV Equip & Rental business
♦ Simulation Application
♦ 3D Visualisation /360 Deg Walkthrough
♦ Interactive touch table
♦ Large Corporates

https://www.cjtouch.com/
https://www.cjtouch.com/
https://www.cjtouch.com/

Specification:

CPU RK3288 4 CORE 1.8Ghz RK3399 6Core 2.0Ghz RK3566 4Core 1.8Ghz
RAM 2GB(4GB,8GB ) 2GB(4GB,8GB) 2GB(4GB,8GB )
Storage EMMC16GB(32GB,64GB ) EMMC 16GB(32GB,64GB) EMMC 16GB(32GB,64GB )
chipset 4 Cortex-A17 2Cortex-A72+4 Cortex-A53 Cortex-A55
OS And-roid 7.1/10.0/Linux4.4/ And-roid 7.1/9.0/11/Ubuntu18.04/ And-roid 7.1/10.0/11 /Linux4.4
GPU Mali-T764 Mali-T860MP4 ARM G52 2EEOpenGL ES 1.1/2.0/3.2,OpenCL 2.0,Vulkan 1.1
3G Optional Optional Optional
4G Optional Optional Optional
WIFI SUPPORT SUPPORT SUPPORT
BT Optional Optional Optional
GPS Optional Optional Optional
MIC SUPPORT SUPPORT SUPPORT
RTC SUPPORT SUPPORT SUPPORT
Timing Power on/off SUPPORT SUPPORT SUPPORT
OS Upgrade Local SD,USB Local SD,USB Local SD,USB
Structure and environment Structural design Aluminum alloy die-casting, full flat panel, fin cooling shell
Operating temperature 0~50℃
Storage temperature -20~70℃
Storage humidity 10~90%(RH) @40°C,no condensation
Vibration 10g peak acceleration (11ms duration), running with HDD
Shock 1g5~500Hz, run with HDD
Installation method Panel mount, VESA 100*100mm, rack mount

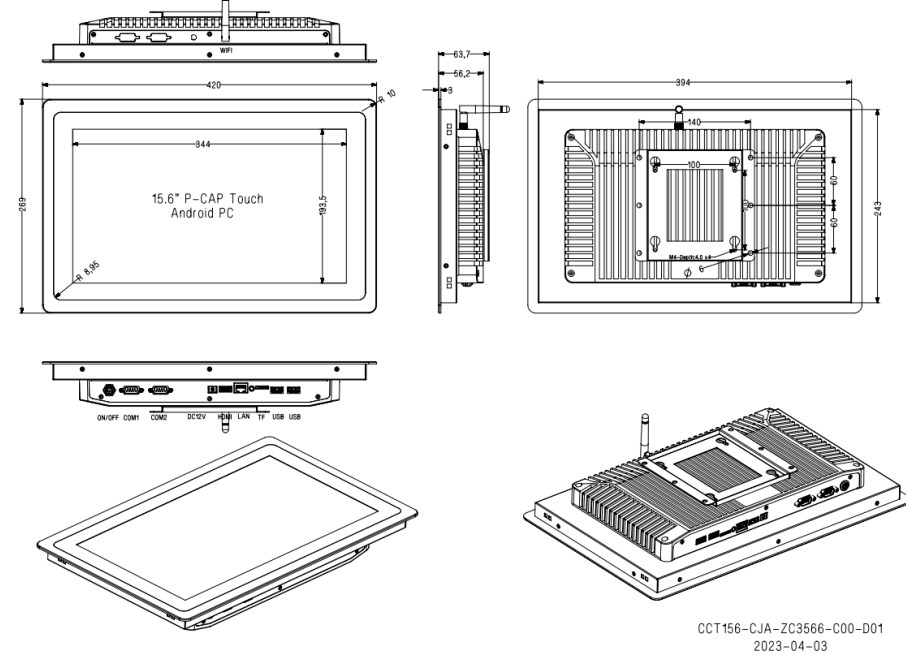

Dimensions (w*h*d): 420*269*63.7mm; panel mounting opening (W*H):344*193.5mm
Net weight 5.5KG
EMC Rohs,CE, FCC
LCD Type 15.6 inch TFT LED
Resolution 1920(RGB)×1080, FHD  141PPI
Color depth 262K   45% NTSC
Dot pitch 0.05975×0.17925 (H×V)
Brightness (cd/m2) 220 cd/m² (Typ.)
Vision 85/85/85/85 (Typ.)(CR≥10)
Operating temperature 0~50℃
Backlight life 30000 hours
Touch Type Projected capacitive screen
Resolution continuous
Transmittance 0.9
Controller USB
Power consumption +5V@300mA
Operating system Android/Linux
Click life 3000 million times
smart fanless panel PC
https://www.cjtouch.com/in-wall-15-6-industrial-tablet-touch-all-in-one-panel-pc-monitor-touch-screen-industrial-tablet-computer-embedded-pc-product/

Components:

https://www.cjtouch.com/in-wall-15-6-industrial-tablet-touch-all-in-one-panel-pc-monitor-touch-screen-industrial-tablet-computer-embedded-pc-product/
https://www.cjtouch.com/flush-mount-open-frame-tft-color-27-inch-lcd-panel-touch-screen-led-tv-monitor-27inch-with-touchscreen-for-kiosk-product/

Production environment

Haptics factory production environment

Company Profile

Founded in 2011. By putting the customer’s interest first, CJTOUCH consistently offers exceptional customer experience and satisfaction through its wide variety of touch technologies and solutions including All-in-One touch systems.

CJTOUCH makes available advanced touch technology at a sensible price for its clientele. CJTOUCH further adds unbeatable value through customization to meet particular needs when required. The versatility of CJTOUCH’s touch products is evident from their presence in varying industries such as Gaming, Kiosks, POS, Banking, HMI, Healthcare and Public Transportation.
