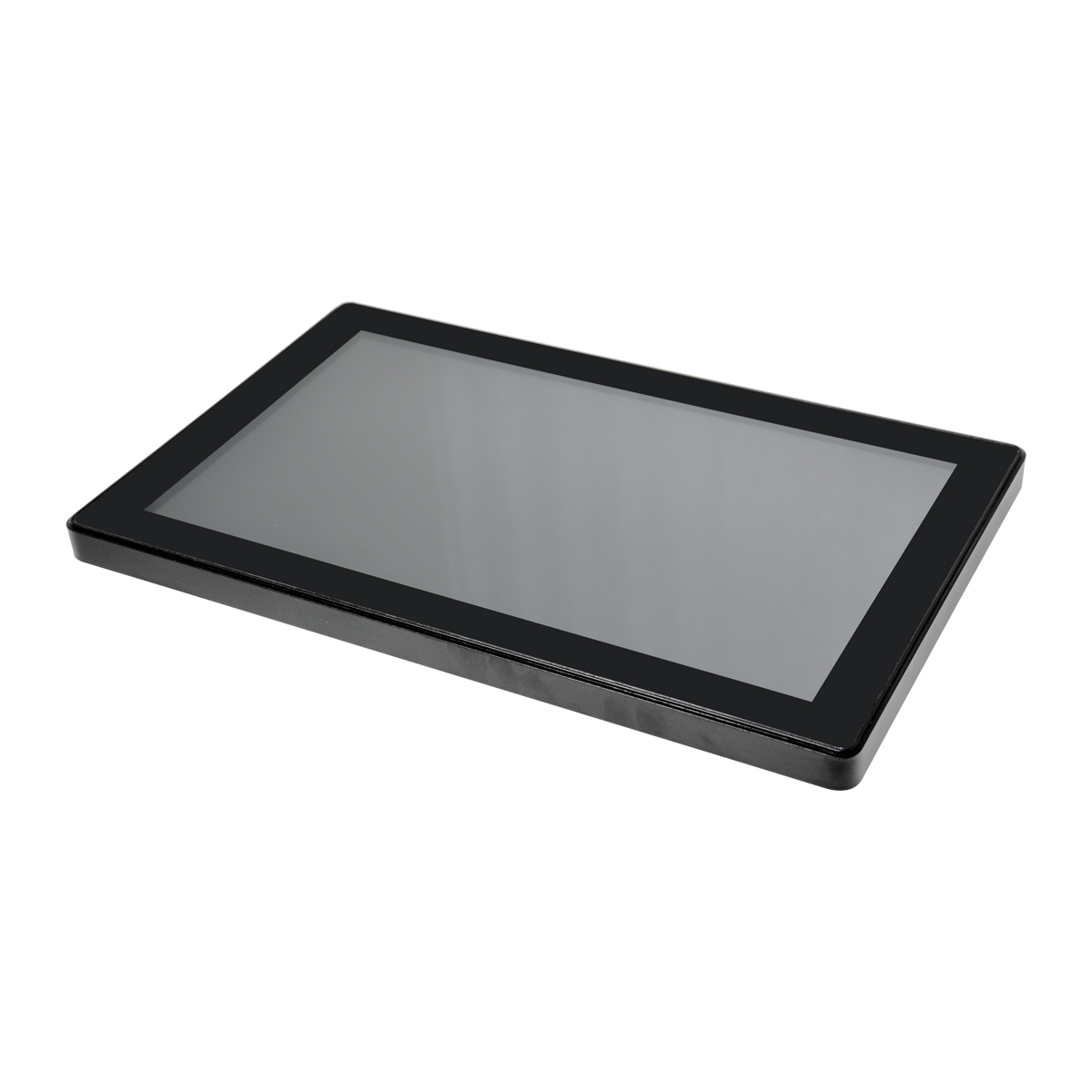

15.6 Inch High Sensitivity touch PCAP monitor TFT LCD Display
Specification:
| General | |
| Model | COT156-CFK03 |
| Series | Water-proof and Flat screen |
| Monitor Dimensions | Width: 399.7mm Height: 247mm Depth: 40mm |
| LCD Type | 15.6” Active matrix TFT-LCD |

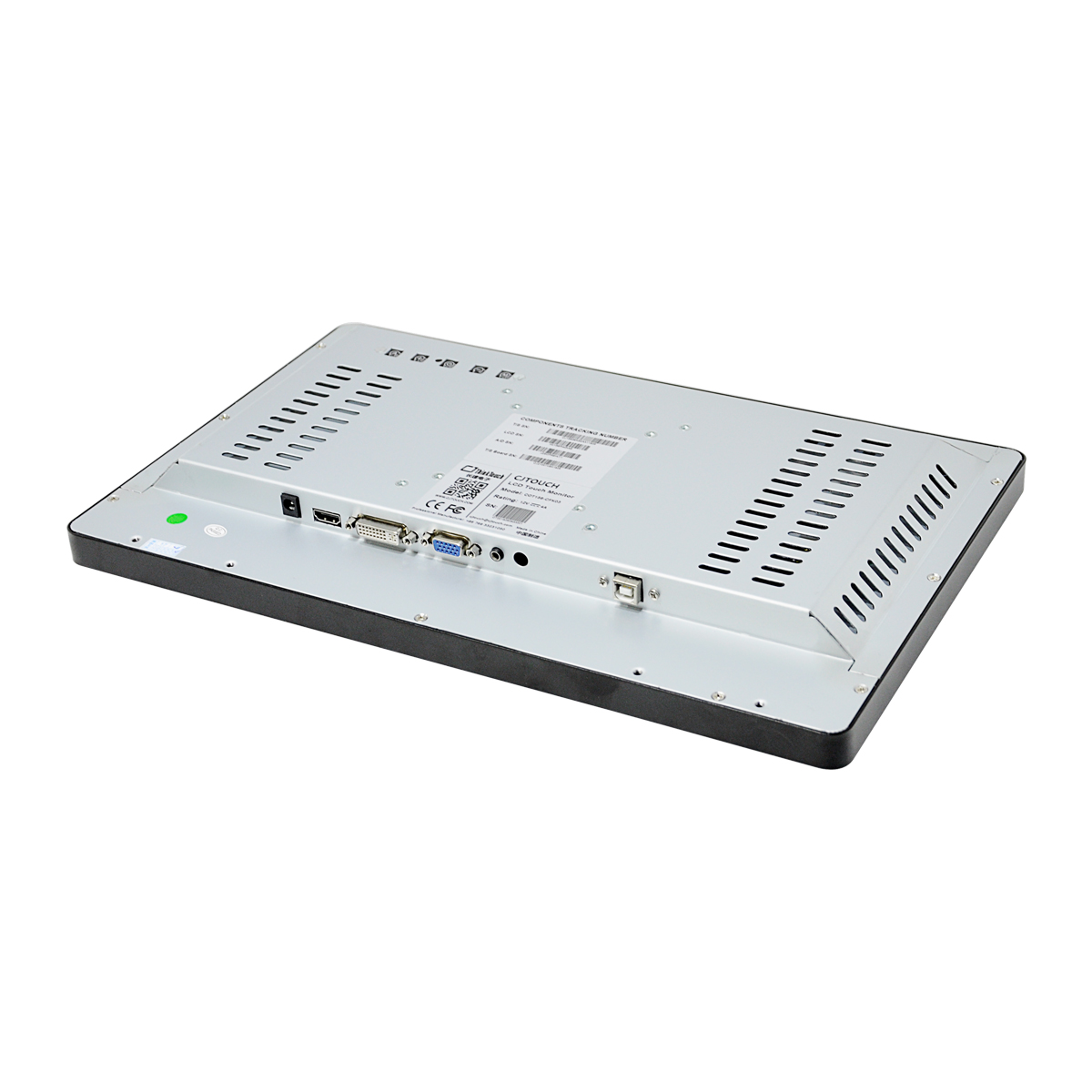

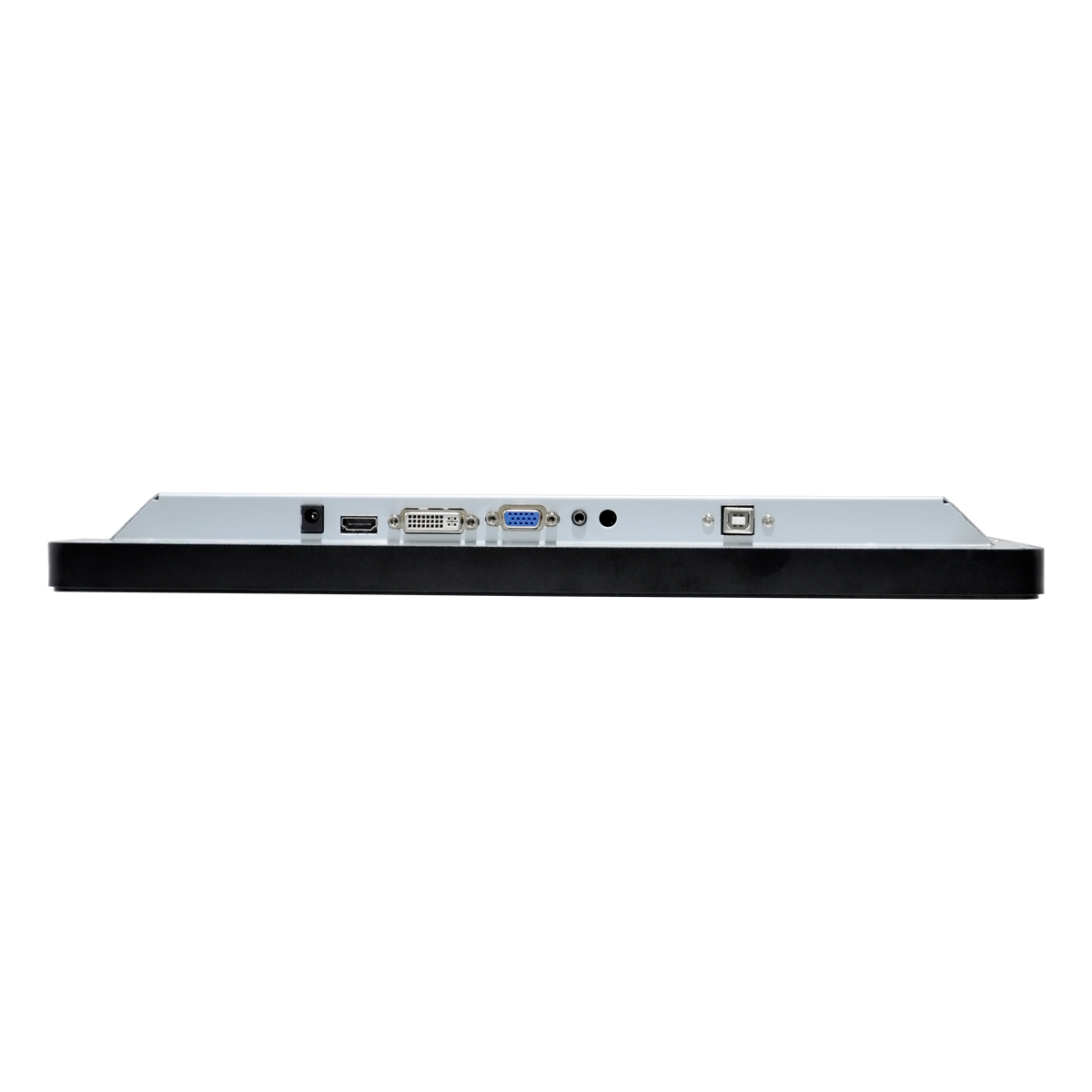

| Video Input | VGA ,DVI and HDMI |
| OSD controls | Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Power Supply | Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts at 4 amps max |
| Mount Interface | 1)VESA 75mm and 100mm2)Mount bracket, horizontal or vertical |
| LCD Specification | |
| Active Area(mm) | 344.16 (H) x 193.59 (V) |
| Resolution | 1920 x1080@60Hz |
| Dot Pitch(mm) | 0.17925 (H) x 0.17925 (V) |
| Nominal Input Voltage VDD | +3.3(Typ) |
| Viewing angle (v/h) | 85°/85°(CR>10) |
| Contrast | 800:1 |
| Luminance(cd/m2) | 220 |
| Response Time(Rising) | 8MS/16MS |
| Support Color | 16.2M colors |
| Backlight MTBF(hr) | 15000(Min) |
| Touchscreen Specification | |
| Type | Cjtouch Projected Capacitive touch screen |
| Multi touch | 10points touch |
| Touch Life Cycle | 10 millions |
| Touch Response time | 8ms |
| Touch System Interface | USB interface |
| Power consumption | +5V@80mA |
| External AC Power Adapter | |
| Output | DC 12V /4A |
| Input | 100-240 VAC, 50-60 Hz |
| MTBF | 50000 hr at 25°C |
| Environment | |
| Operating Temp. | 0～50°C |
| Storage Temp. | -20～60°C |
| Operating RH: | 20%～80% |
| Storage RH: | 10%～90% |
Components:
USB Cable 180cm*1 Pcs,
VGA Cable 180cm*1 Pcs,
Power Cord with Switching Adapter *1 Pcs,
Bracket*2 Pcs.
Applications:
♦ Information Kiosks
♦ Gaming Machine, Lottery , POS, ATM and Museum Library
♦ Government projects and 4S Shop
♦ Electronic catalogs
♦ Computer-based traning
♦ Eductioin and Hospital Healthcare
♦ Digital Signage Advertisement
♦ Industrial Control System
♦ AV Equip & Rental business
♦ Simulation Application
♦ 3D Visualisation /360 Deg Walkthrough
♦ Interactive touch table
♦ Large Corporates
