15” to 110” Capacitive touch screen foil

Short Description:

Standard Size 15~110 inch Capacitive Nano TouchScreen Film Touch Foil;

 USB 10 points PCAP Touch Foil Films;

• CE,FCC,ISO14001,ISO9001,RoHS Certifications;

 EETI,ILKTEK,LG,Samsung,SIS Compatible Controller Board Driver;

 Transparent ,Frameless ,Waterproof ,Esay and Delightful for Transpotation;

• Windows,Linux,Android,Imac,Raspberry pi OS Supported.


Product Detail

Product Tags

Specification:

Metal grid capacitor film technical parameters

Sensing Method

Projected Capacitive Technology (replace ITO layer with a metal mesh matrix)

Transmittance

91%

Thickness

0.2mm

Size

15-80 inches

Positioning accuracy

+ -2mm

Sensor

4224

Scanning speed

90p / 1ms

Supply voltage

5v

Power

3.3v

Safety distance

2mm

Operating temperature

-20 to + 70 ° C

Operating Humidity

0-95%

Output interface

HID-usb

Multi touch Support

10 points touch

Technical parameters

Two-finger pitch 20mm finger center to finger center, glass thickness 4-5mm

Light resistance

Whole point of anti-glare

Software Compatibility

Win7 8, mac, Android (need to load the source code)

6

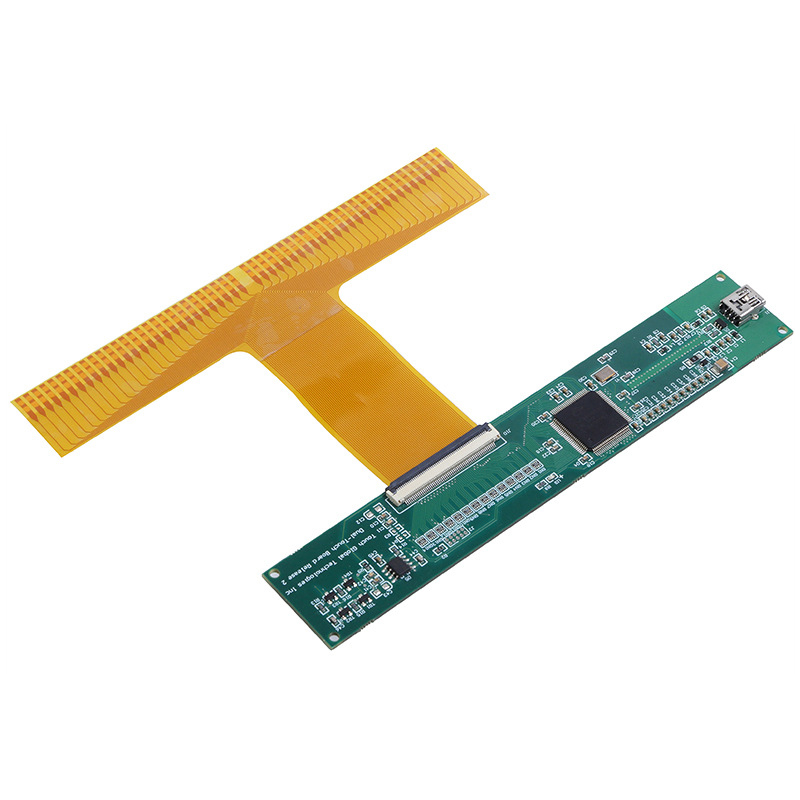

37

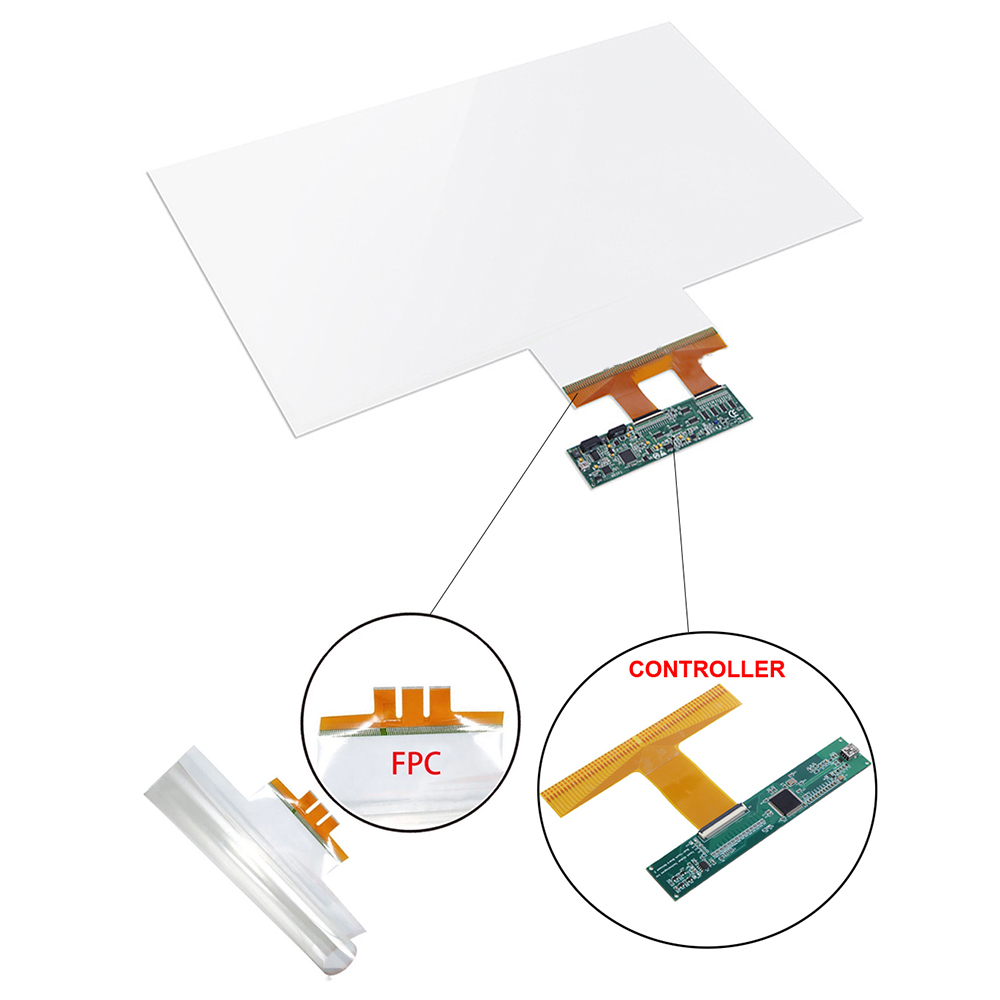

TOUCH FOIL 3

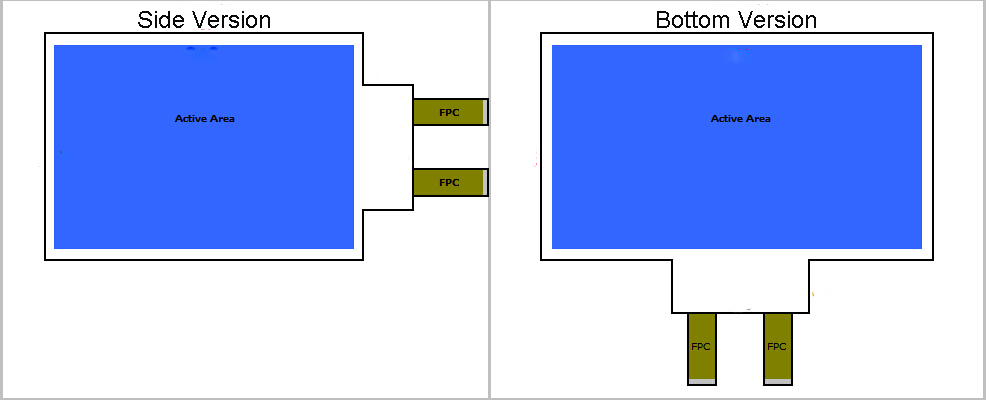

Tail location:

123

Applications:

https://www.cjtouch.com/

♦ Information Kiosks
♦ Gaming Machine, Lottery , POS, ATM and Museum Library
♦ Government projects and 4S Shop
♦ Electronic catalogs
♦ Computer-based traning
♦ Eductioin and Hospital Healthcare
♦ Digital Signage Advertisement

♦ Industrial Control System
♦ AV Equip & Rental business
♦ Simulation Application
♦ 3D Visualisation /360 Deg Walkthrough
♦ Interactive touch table
♦ Large Corporates
