10 inch tft touch screen lcd monitor Industrial level
Specification:
| General | |
| Model | COT101-CAK03-C00 |
| Series | Industrial |

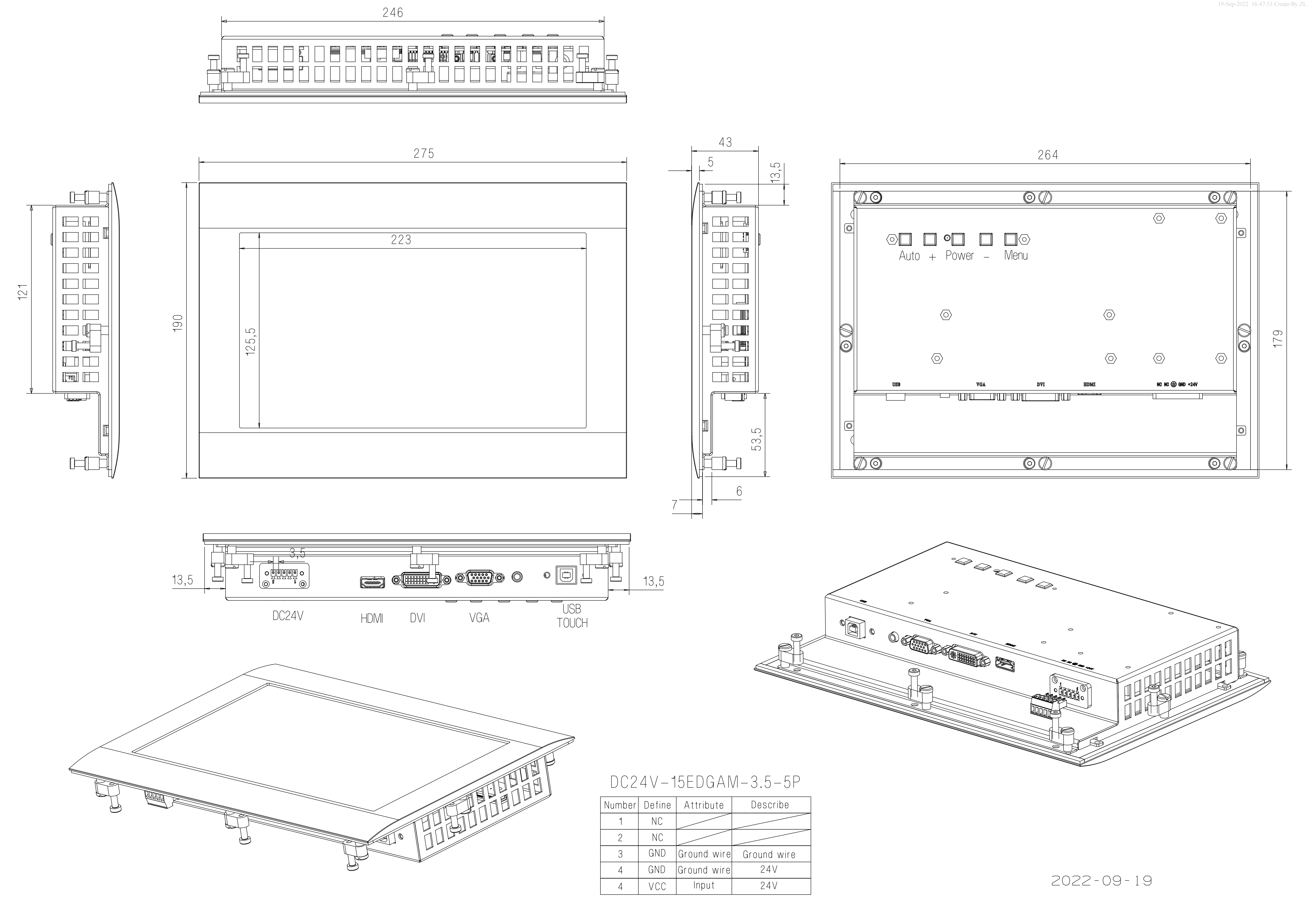

| Monitor Dimensions | Width: 275mm Height: 190mm Depth: 43mm |
| LCD Type | 10.1” Active matrix TFT-LCD |
| Video Input | VGA HDMI and DVI |
| OSD controls | Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Power Supply | Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts at 4 amps max |
| Mount Interface | Mount bracket, horizontal |
| LCD Specification | |
| Active Area(mm) | 222.72 × 125.28 mm |
| Resolution | 1024(RGB)×600 |
| Dot Pitch(mm) | 0.0725×0.2088 |
| Nominal Input Voltage VDD | 3.3V |
| Viewing angle (v/h) | 80/80/75/80 (Typ.)(CR≥10) |
| Contrast | 800:1 |
| Luminance(cd/m2) | 450 |
| Response Time(Rising) | 7/9 (Typ.)(Tr/Td) ms |
| Support Color | 16.7M colors |
| Backlight MTBF(hr) | 30000(Min) |
| Touchscreen Specification | |
| Type | Cjtouch Projected Capacitive touch screen |
| Multi touch | 10points touch |
| Touch Life Cycle | 10 millions |
| Touch Response time | 5ms |
| Touch System Interface | USB interface |
| Power consumption | +5V@80mA |
| External AC Power Adapter | |
| Output | DC 12V /4A |
| Input | 100-240 VAC, 50-60 Hz |
| MTBF | 50000 hr at 25°C |
| Environment | |
| Operating Temp. | -20～70°C |
| Storage Temp. | -30～80°C |
| Operating RH: | 20%～80% |
| Storage RH: | 10%～90% |
Components:
USB Cable 180cm*1 Pcs,
VGA Cable 180cm*1 Pcs,
Power Cord with Switching Adapter *1 Pcs,
Bracket*2 Pcs.
Applications:
♦ Information Kiosks
♦ Gaming Machine, Lottery , POS, ATM and Museum Library
♦ Government projects and 4S Shop
♦ Electronic catalogs
♦ Computer-based traning
♦ Eductioin and Hospital Healthcare
♦ Digital Signage Advertisement
♦ Industrial Control System
♦ AV Equip & Rental business
♦ Simulation Application
♦ 3D Visualisation /360 Deg Walkthrough
♦ Interactive touch table
♦ Large Corporates
