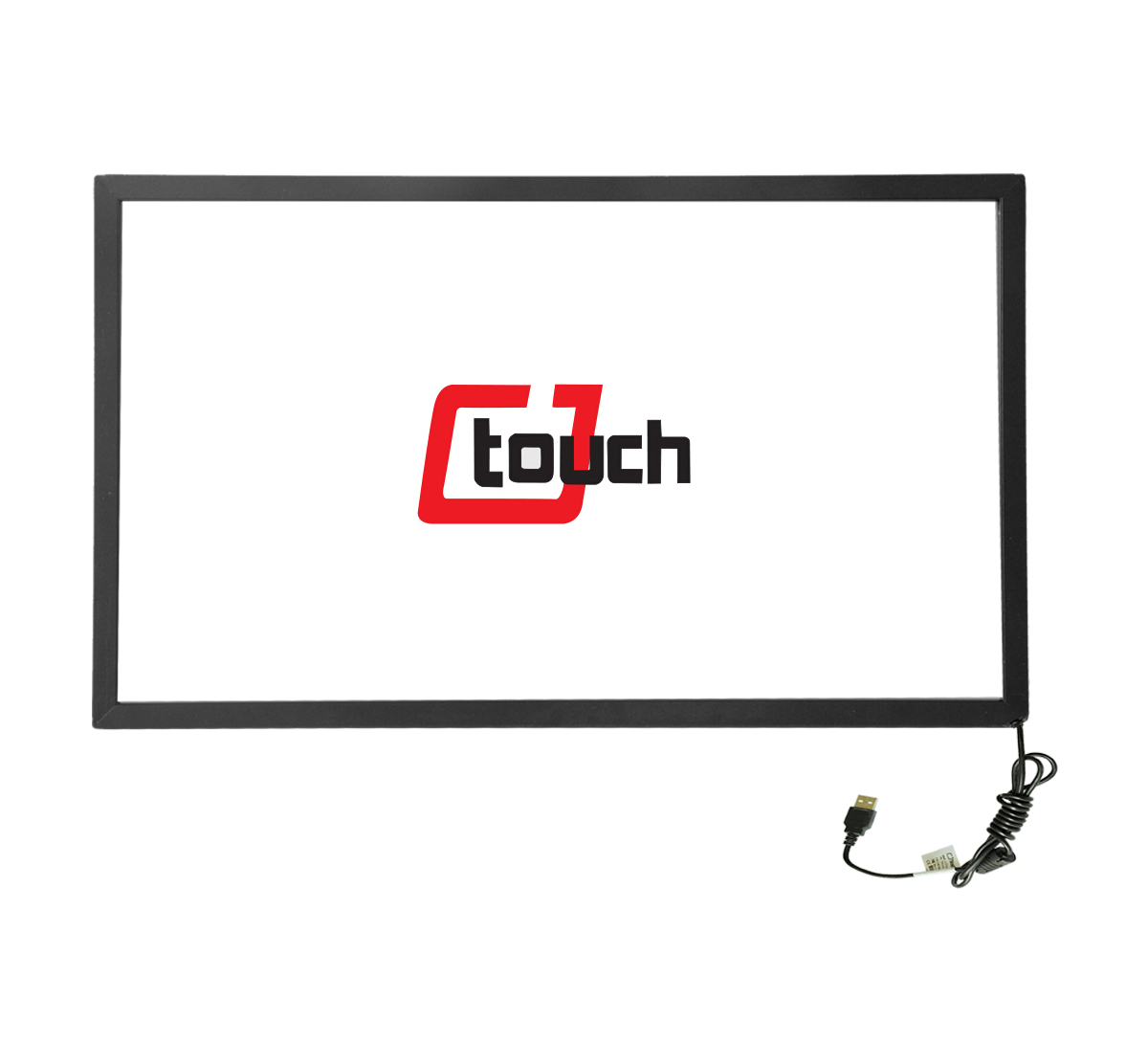

High quality multi points Ir 21.5 inch Infrared Touch Screen Frame kit

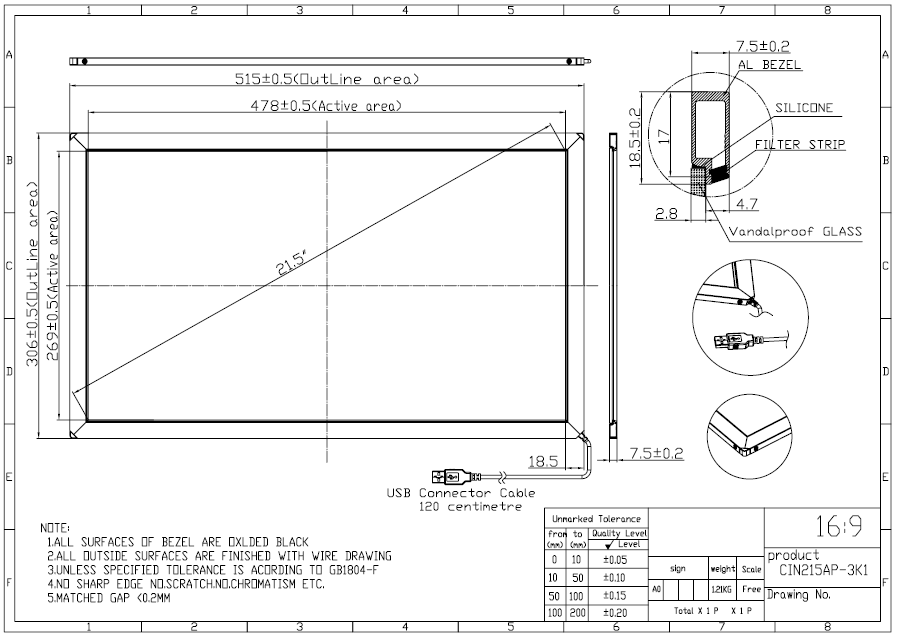

21.5 inch IR Touch screen frame specification :
| MECHANICAL | |
| P/N | CIN215AP-3K1-W2 |
| Housing | Aluminum frame |
| Touch panel size(mm) | 515*306 |
| Active area(mm) | 478*269 |
| TOUCH CHARACTERISTICS | |
|
Input Method |
Finger or touch pen（Support Six points touch） |
| Touch Activation Force |
Non Minimum activation force |
| Position Accuracy |
2mm |
| Resolution |
4096(W) × 4096(D) |
| Response Time |
Touch: 8ms |
|
Drawing : 8ms |
|
| Cursor Speed |
120 dot/sec |
| Glass |
No glass or 3mm glass，Transparence : 92% |
| Optics Cell Area | 6.0*9.0mm |
| Object Touch Size | ≥ Ø5mm |
| Touch Intensity | Over 60 millions single touch |
| ELECTRICAL | |
|
Operating Voltage |
DC 4.5V ~ DC 5.5V |
|
Power |
1.0W (100mA at DC 5V) |
|
Anti -Static Discharge (Standard :B) |
Touch Discharge，Grade 2：Lab Vol 4KV |
| Air Discharge，Grade 3：Lab Vol 8KV | |
| ENVIRONMENT | |
| Temperature | operating：-10 °C ~ 50 °C |
| storage：-30°C ~ 60 °C | |
| Humidity | operating：20% ~85% |
| storage：0%~95% | |
| Relative Humidity | 40 °C，90% RH |
| Anti – glare Test | Incandescent lamp (220V,100W) ,
operating distance over 350mm |
|
Altitude |
3,000m |
|
Interface |
USB2.0 full speed |
|
Detection Method |
Infrared rays |
|
Seal Ability |
IP65 |
|
Working Environment |
Under sunlight ,indoor and outdoor |
| Application of Display | LED、LCD、PDP |
| Software（Firmware） | |
| Scanning | Auto full screen scanning |
| Touch Trigger | Drop,raise,move on screen |
| Output | Coordinate output |
Applications:
♦ Information Kiosks
♦ Gaming Machine, Lottery , POS, ATM and Museum Library
♦ Government projects and 4S Shop
♦ Electronic catalogs
♦ Computer-based traning
♦ Eductioin and Hospital Healthcare
♦ Digital Signage Advertisement
♦ Industrial Control System
♦ AV Equip & Rental business
♦ Simulation Application
♦ 3D Visualisation /360 Deg Walkthrough
♦ Interactive touch table
♦ Large Corporates
