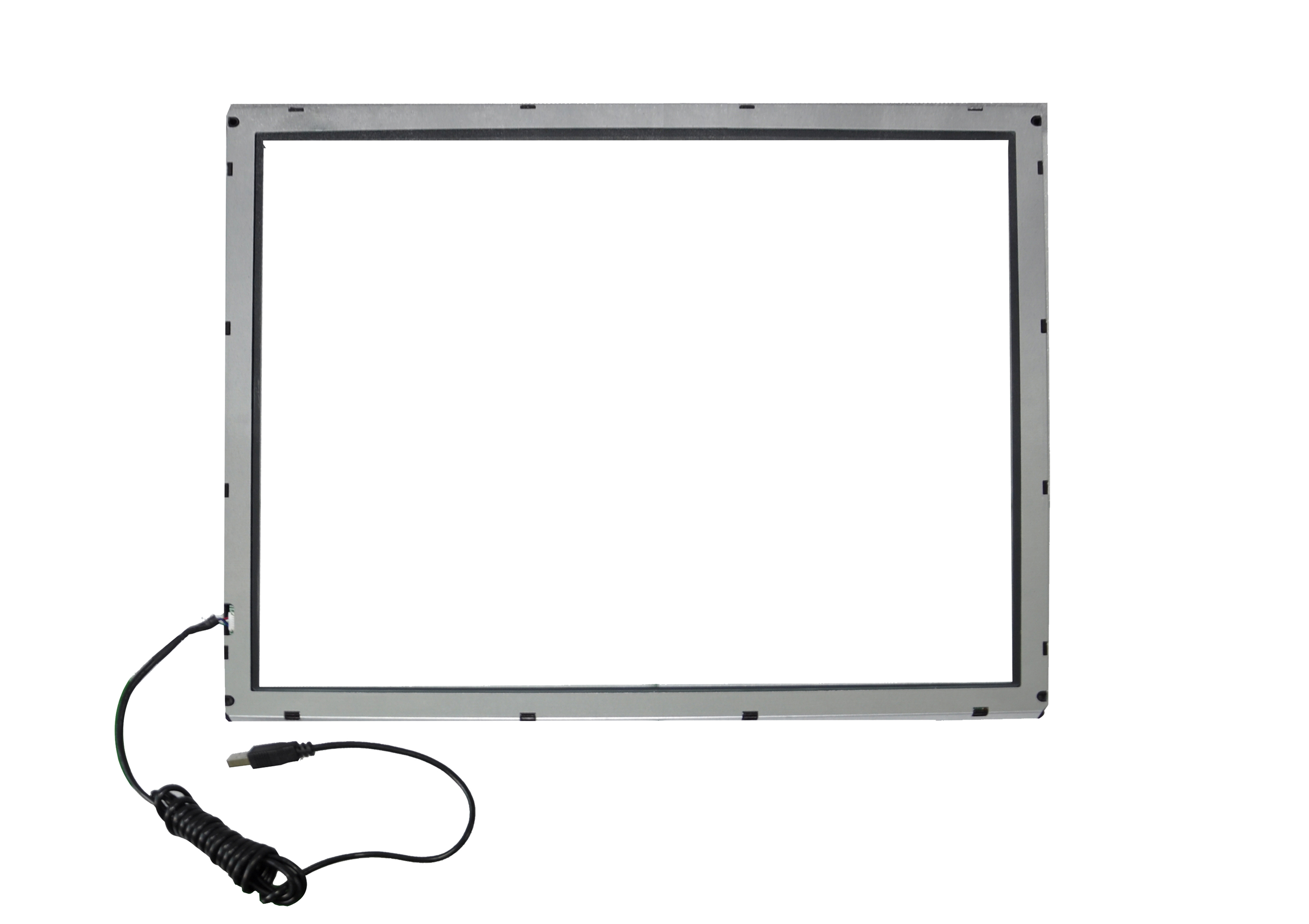

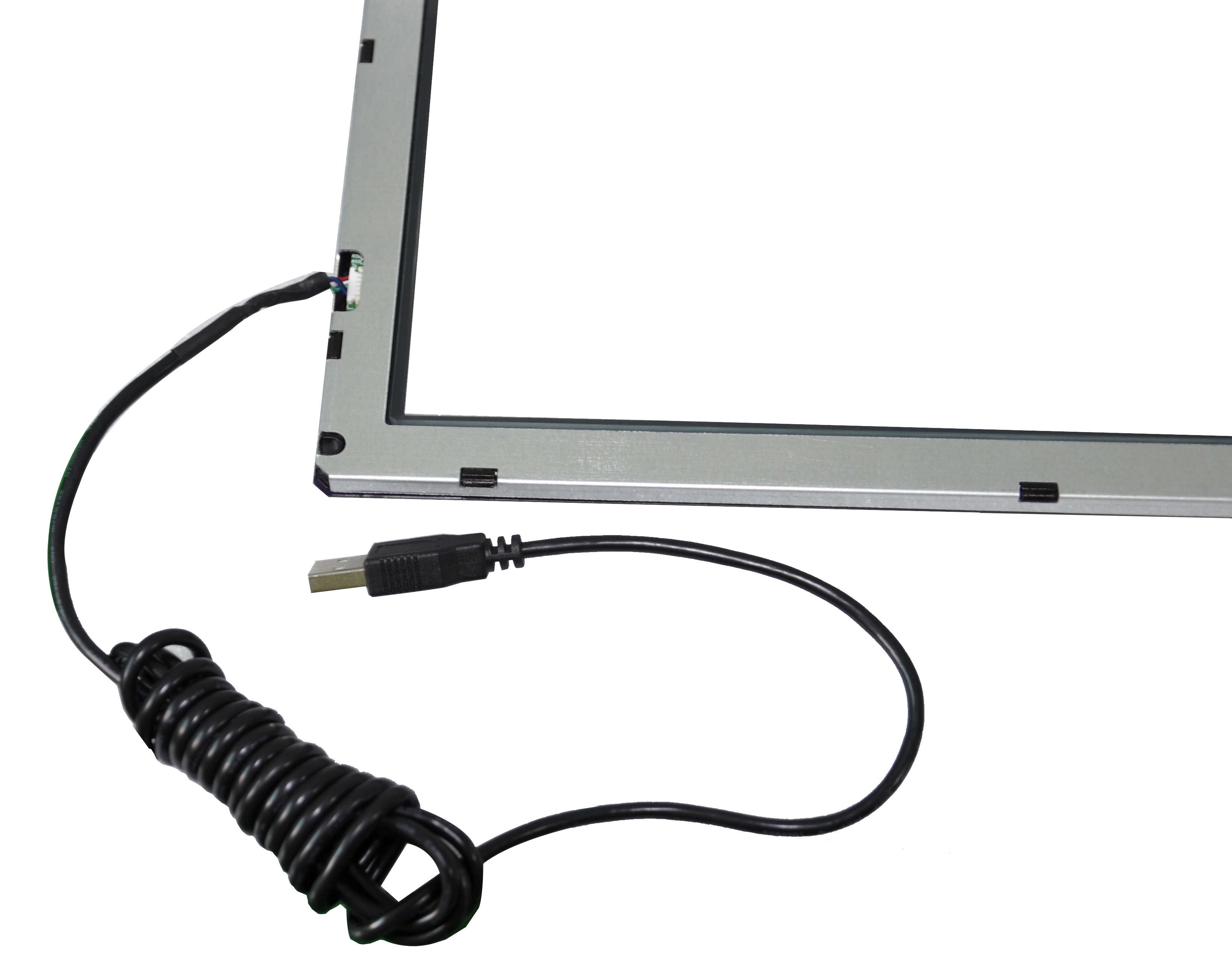

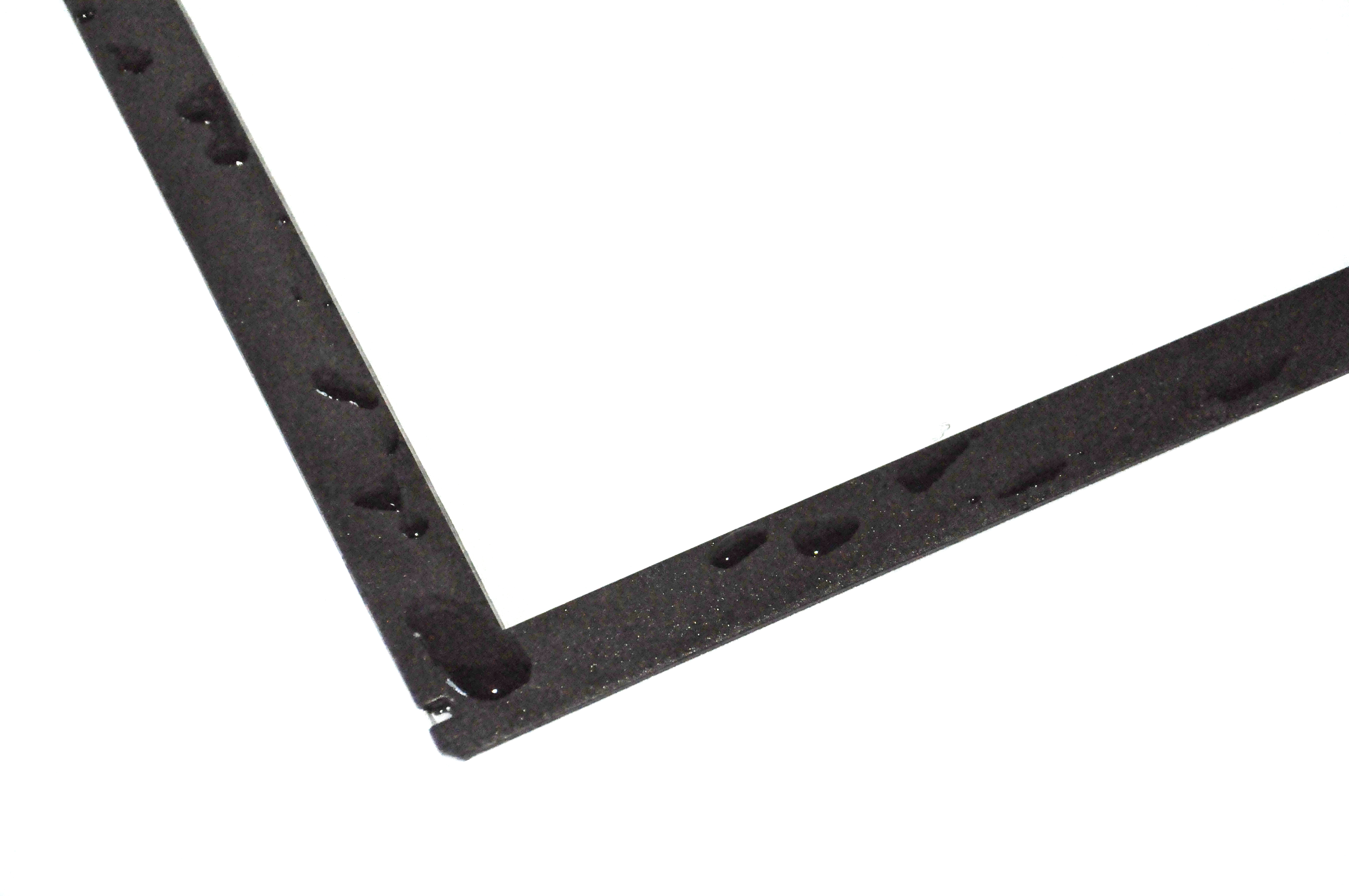

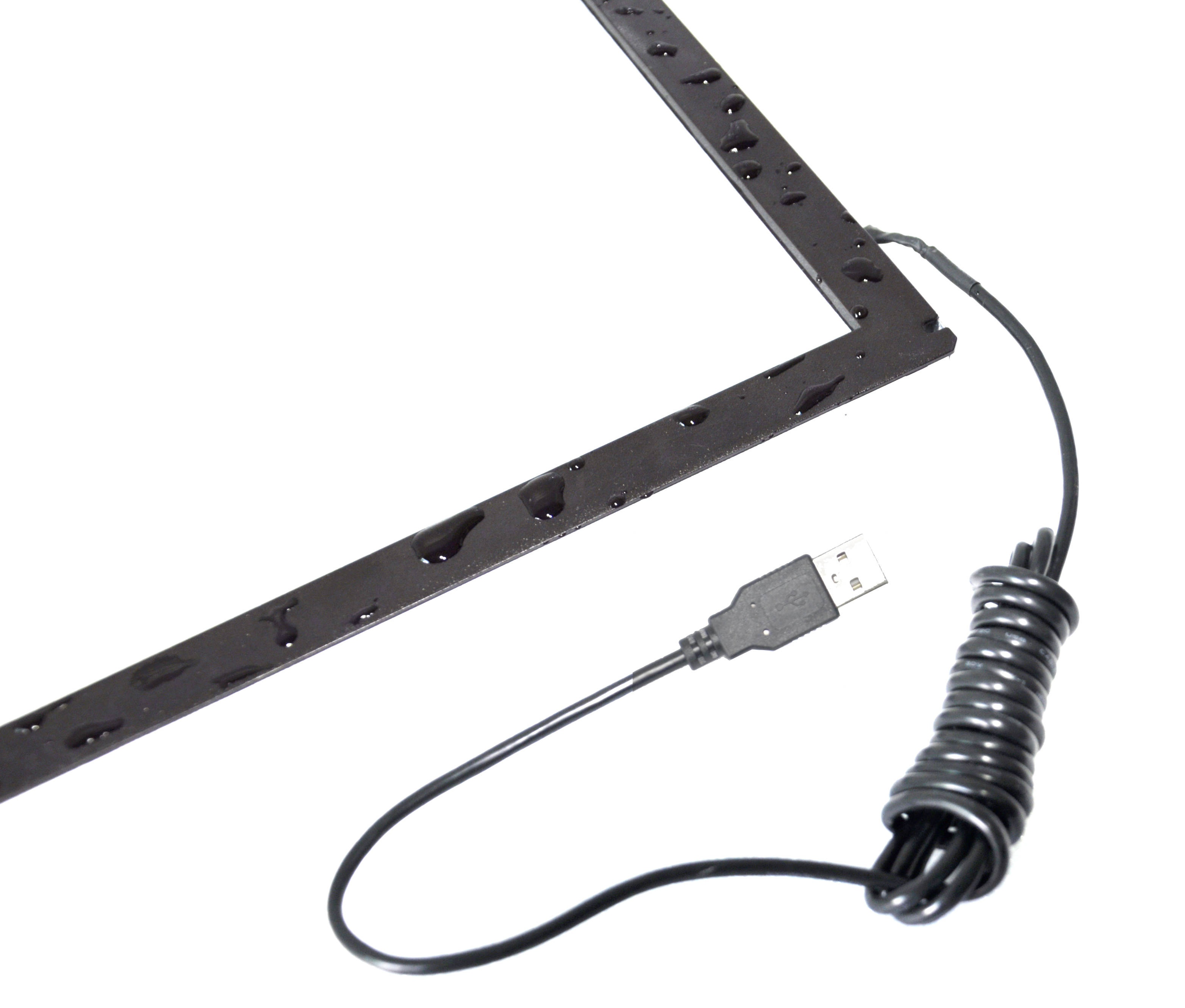

17 inch Outdoor ip66 Waterproof Touchscreen IR Touch Panel Self AR AG tempered glass infrared touchscreen frame for Self Service Kiosk
17 inch IR Touch Screen specification :
| Specification |
| Product Name | 17 inch Multi-points IR touch screen panel,touch screen frame |
| Dimension | 19mm width, 8.7mm thickness (with frame, without glass) |
| Number of Touch Points | 2-32 points |
| Touch Activation Force | No minimum touch pressure required |
| Touch Durability | Unlimited |
| Resolution | 32768x32768 |
| Driver Free | HID* compatible, up to 40 touch points |
| Fault Tolerance | Workable even 75% sensors are damaged |
| Frames per Second | Up to 450 fps |
| Typical Response Time | 10ms |
| Light Transmission | 100% without glass |
| Re-development | Provide free SDK, support C/C++, C#, Java etc. |
| Warranty | 1years limited warranty |
| Power Supply | Single USB Connection |
| Low Power Consumption | Operating ≤2W, Stand By ≤ 250mW |
| Operating Temperature | -20°C~70°C |
| Storage Temperature | -40°C~85°C |
| Humidity | Operating Humidity: 10%~90%RH(Non-condensing) Storage Humidity: 10%~90%RH |
| Certification | CE ,ROHS |
Waterproof infrared touch screen works by using infrared and photoelectric sensor imaging principle, when touching the screen, the finger will block the horizontal and vertical two infrared rays passing through the location, and thus can determine the location of the touch point in the screen. Infrared touch screen in front of the installation of a circuit board frame, the circuit board is arranged infrared transmitter and infrared receiver tube, forming a horizontal and vertical cross infrared matrix. When the user touches the screen, the finger will block the horizontal and vertical two infrared rays passing through the position, the control system can determine the user's touch position according to the infrared offset.
Applications:
♦ Information Kiosks
♦ Gaming Machine, Lottery , POS, ATM and Museum Library
♦ Government projects and 4S Shop
♦ Electronic catalogs
♦ Computer-based traning
♦ Eductioin and Hospital Healthcare
♦ Digital Signage Advertisement
♦ Industrial Control System
♦ AV Equip & Rental business
♦ Simulation Application
♦ 3D Visualisation /360 Deg Walkthrough
♦ Interactive touch table
♦ Large Corporates
