15.6 Inch PC ip65 Waterproof and Dust proof fanless aio 4G 16G Embedded Industrial Touch Panel Pc Android 11
15.6 inch PCAP Touch PC specification :
|
System |
P/N |
CCT156-CJA-B190-C00 |
CCT156-CJA-B412-C00 |
CCT156-CJA-B100-C00 |
|
CPU |
Intel Bay trail J1900 |
Intel Celeron J4125 |
Intel 10210U , Gen. 6/7th I3/I5/I7 |
|
|
RAM |
1*D3 NB 4GB,Max 8GB |
1*D4 NB 4GB,Max 32GB |
2*D4 NB 4GB,Max 64GB |
|
|
Storage |
1*MSATA 128GB,1*2.5Inch hdd |
1*MSATA 128GB,1*M.2 2280/2260 1*2.5Inch hdd |
1*MSATA128GB,1*M.22280/2260 1*2.5Inch hdd |
|
|
Audio |
ALC662 6Chanel HIFI controller |
ALC892 7.1+2Chanel HIFI controller |
ALC888S 7.1+2Chanel HIFI controller |
|
|
LAN |
Realtek RTL8111H 1000Mbps network wake up/PXE |
Intel I225 1000Mbps network wake up/PXE |
Realtek RTL8111H 1000Mbps, network wake up/PXE |
|
|
CHIPSET |
Intel®SOC |
Intel®SOC |
Intel®SOC |
|
|
Wifi/4G |
OPTIONAL |
OPTIONAL |
OPTIONAL |
|
|
Bios |
64Mb Flash ROM |
64Mb Flash ROM |
64Mb Flash ROM |
|
|
Show |
15.6 inch TFT LCD panel |
|||
|
Touch Screen |
projected capacitive screen, USB control |
|||
|

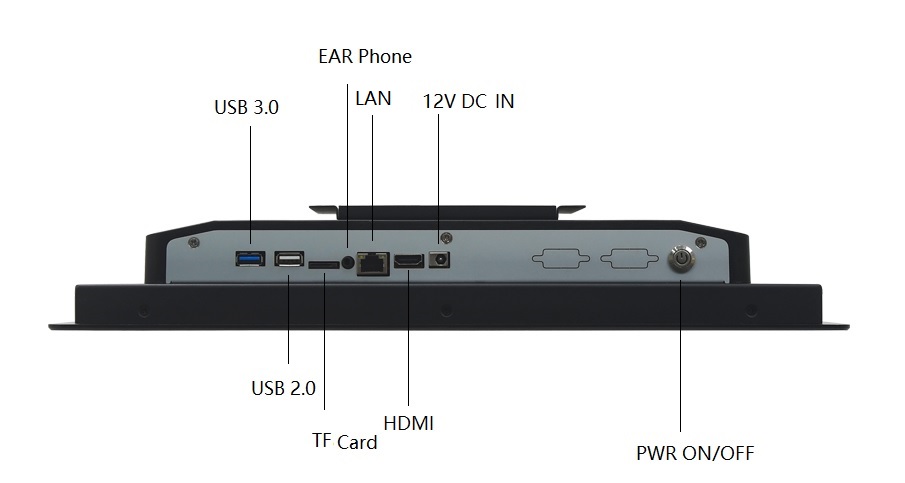

Rear Panel I/O |
2*COM: RS232/422/485 Optional,3*USB 2.0,1*USB3.0 1*HDMI, 1*VGA DB9,1*Line out 3.5mmPhonejack,1*mic 1*RJ45,2*ANT |
|||
|
Power |
DC_IN 12V 5A, DC-IN 3-pin interface,CPU:TDP 10-15W |
|||
|
Operating System |
Android 11 |
|||
Applications:
♦ Information Kiosks
♦ Gaming Machine, Lottery , POS, ATM and Museum Library
♦ Government projects and 4S Shop
♦ Electronic catalogs
♦ Computer-based traning
♦ Eductioin and Hospital Healthcare
♦ Digital Signage Advertisement
♦ Industrial Control System
♦ AV Equip & Rental business
♦ Simulation Application
♦ 3D Visualisation /360 Deg Walkthrough
♦ Interactive touch table
♦ Large Corporates
Company Profile
Founded in 2011. By putting the customer’s interest first, CJTOUCH consistently offers exceptional customer experience and satisfaction through its wide variety of touch technologies and solutions including All-in-One touch systems.
CJTOUCH makes available advanced touch technology at a sensible price for its clientele. CJTOUCH further adds unbeatable value through customization to meet particular needs when required. The versatility of CJTOUCH’s touch products is evident from their presence in varying industries such as Gaming, Kiosks, POS, Banking, HMI, Healthcare and Public Transportation.
