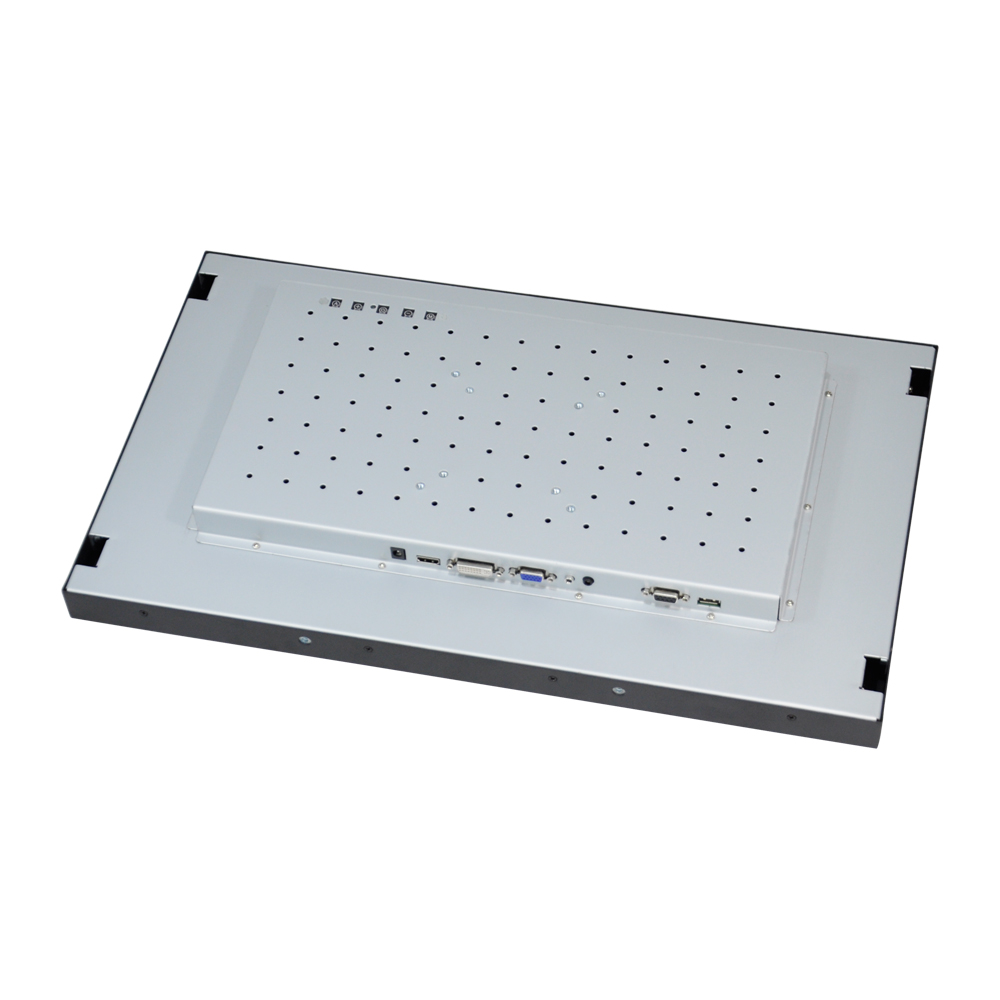

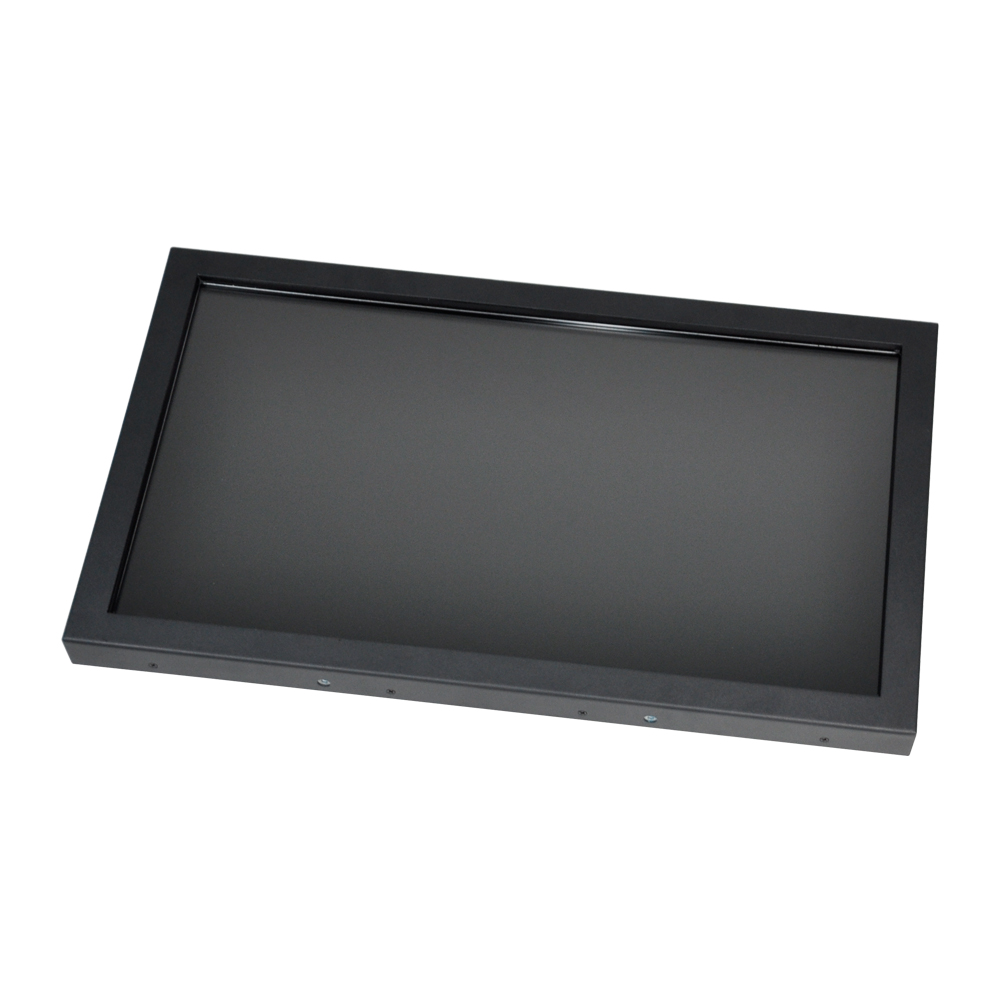

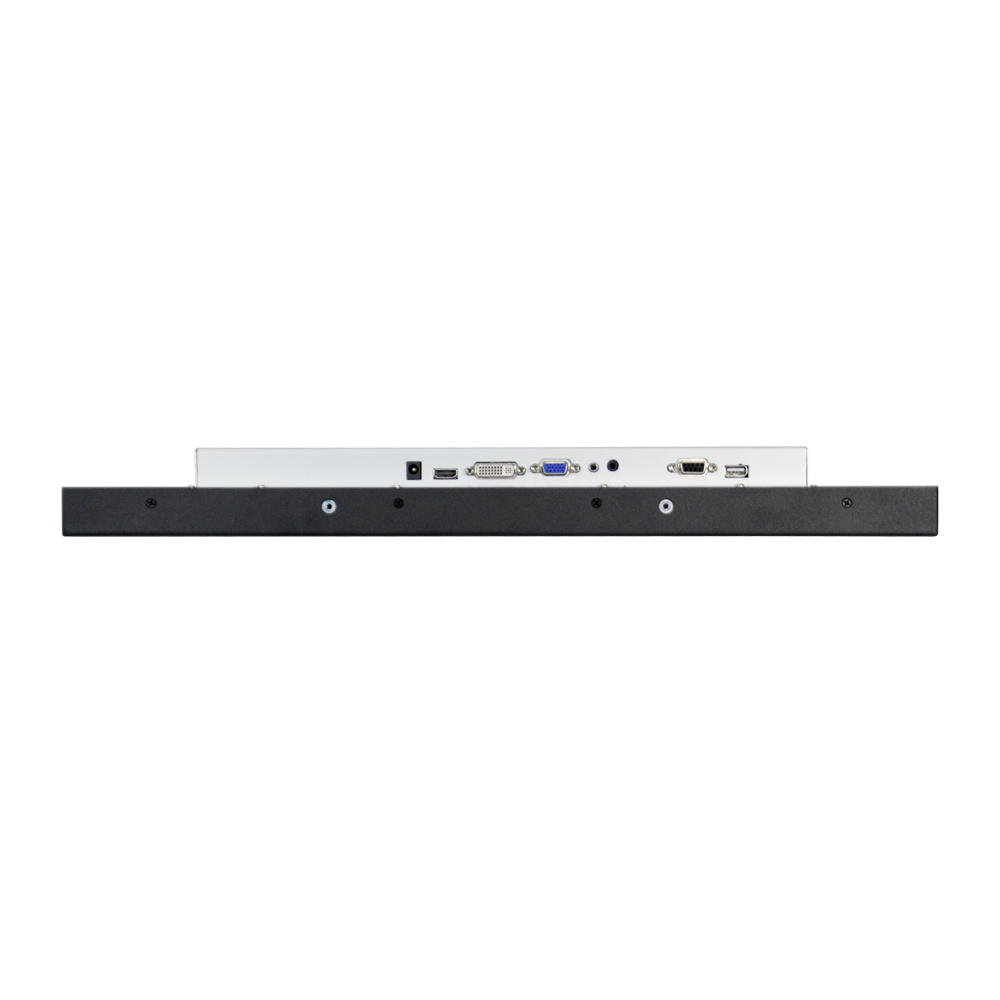

21.5 inch Infrared monitor touch screen For Kiosks 10 Points Multi Touch
Specification:
| General | |
| Model | COT215-IPK03 |
| Series | Dust-proof and Compact |
| Monitor Dimensions | Width: 528mm Height: 318mm Depth:56mm |
| LCD Type | 21.5”SXGA Color TFT-LCD |
| Video Input | VGA DVI And HDMI |
| OSD controls | Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Power Supply | Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts at 4 amps max |
| Mount Interface | 1)VESA 75mm and 100mm
2)Mount bracket, horizontal or vertical |
| LCD Specification | |
| Active Area(mm) | 476.64(H)×268.11(V) |
| Resolution | 1920x1080@60Hz |
| Dot Pitch(mm) | 0.24825×0.24825 |
| Nominal Input Voltage VDD | +5.0V(Typ) |
| Viewing angle (v/h) | 89°/89° |
| Contrast | 1000:1 |
| Luminance(cd/m2) | 250 |
| Response Time(Rising/Falling) | 5ms/14ms |
| Support Color | 16.7M colors |
| Backlight MTBF(hr) | 30000 |
| Touchscreen Specification | |
| Type | Cjtouch Infrared(IR)) touch screen |
| Resolution | 4096*4096 |
| Light Transmission | 92% |
| Touch Life Cycle | 50 millions |
| Touch Response time | 8ms |
| Touch System Interface | USB interface |
| Power consumption | +5V@80mA |
| External AC Power Adapter | |
| Output | DC 12V /4A |
| Input | 100-240 VAC, 50-60 Hz |
| MTBF | 50000 hr at 25°C |
| Environment | |
| Operating Temp. | 0～50°C |
| Storage Temp. | -20～60°C |
| Operating RH: | 20%～80% |
| Storage RH: | 10%～90% |
| Package | |
| Package way | 1sets in 1 carton EPE packaging inside |
| Gross weight/Carton size | 9.5KGS/60×18×39CM |
Components:
USB Cable 180cm*1 Pcs,
VGA Cable 180cm*1 Pcs,
Power Cord with Switching Adapter *1 Pcs,
Bracket*2 Pcs.
Applications:
♦ Information Kiosks
♦ Gaming Machine, Lottery , POS, ATM and Museum Library
♦ Government projects and 4S Shop
♦ Electronic catalogs
♦ Computer-based traning
♦ Eductioin and Hospital Healthcare
♦ Digital Signage Advertisement
♦ Industrial Control System
♦ AV Equip & Rental business
♦ Simulation Application
♦ 3D Visualisation /360 Deg Walkthrough
♦ Interactive touch table
♦ Large Corporates
FAQ
1. How long is the warranty time for your products?
Warranty time is one to three years.
2. Do you give any discount ?
Yes, we are looking for long term business cooperation. We will always offer customers the reasonable price based on the right solution.
3. What’s the HS CODE?
Touch monitor HS CODE: 8528591090
Touch screen HS CODE: 8471609000
4. Is your Sample free?
You need to pay for the sample cost, but we will return the sample cost once your mass production order adds ups to 200pcs.
