15.6 inch Vandal proof cheap touch screen monitor

Short Description:

· 1-10 point real multi touch

· HD Panel, Clear Presentation LED Backlight.

· IP65 Front Panel Alluminum Alloy Enclouse.

· Industrial Grade Rugged Design.

· Runs 24 Hours A Day.

· Efficient Cooling System.

· High And Low Temperature Resistant Design.Free for 1 year warranty

· Optional size:10.4″ to 65

· Can Customizable vanfalprool /waterproof /dusproof/Anti Sunlight/AG/AR/AF Glass option.


Product Detail

Product Tags

Specification:

Model COT156-IPK02D
Series Dust-proof and Compact
Monitor Dimensions Width:392mm  Height: 245mm  Depth:39.7mm
Weight(N.W/G.W) 6Kg /7Kg (Approx.)
LCD Type 15.6”LCD With an LED backlight
Video Input VGA  and HDMI
Type Cjtouch IR touch screen Daul touch
Touch System Interface USB interface
Power consumption +5V@80mA
Active Area(mm) 344.16(H)×193.59(V)
Resolution 1920×1080
Dot Pitch(mm) 0.17925 x 0.17925
Nominal Input Voltage VDD +5V(Typ)
Viewing angle (v/h) 70°/60°
Contrast 400:1
Luminance(cd/m2) 300
Response Time(Rising/Falling) 1.5s/3.5s
Support Color 16.7M colors
Backlight MTBF(hr) 30000
Output DC12V /4A
Input 100-240 VAC, 50-60 Hz
MTBF 30000 hr at 25°C
Operating Temp. 0~50°C
Storage Temp. -20~60°C
Operating RH: 20%~80%
Storage RH: 10%~90%
OSD controls Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Power Supply Type: External brick
Input (line) voltage: 100-240 VAC, 50-60 Hz
Output voltage/current: 12 volts at 4 amps max
Mount Interface 1)VESA 75mm and 100mm2)Mount bracket, horizontal or vertical
Regular Warranty 3 years for IR touch screen;  1 year for LCD
Agency Approval FCC,CE
2
4
6

Components:

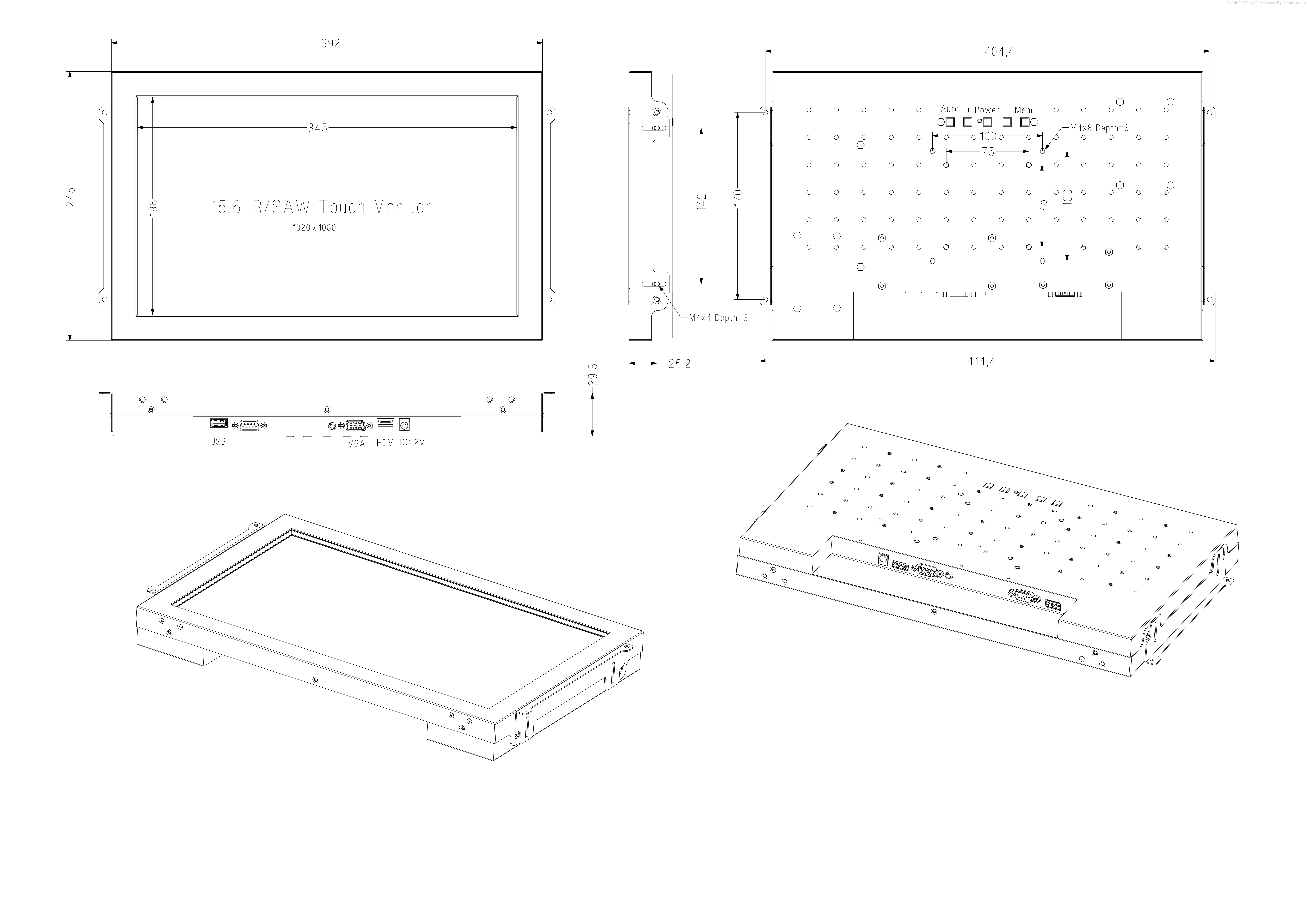

COT156-IPK02D-ASM-D09a-201772610156_00

USB Cable 180cm*1 Pcs,

VGA Cable 180cm*1 Pcs,

Power Cord with Switching Adapter *1 Pcs,

Bracket*2 Pcs.

https://www.cjtouch.com/19-inch-ip65-waterproof-infrared-pc-monitor-touch-screen-product/

Applications:

https://www.cjtouch.com/

♦ Information Kiosks
♦ Gaming Machine, Lottery , POS, ATM and Museum Library
♦ Government projects and 4S Shop
♦ Electronic catalogs
♦ Computer-based traning
♦ Eductioin and Hospital Healthcare
♦ Digital Signage Advertisement

♦ Industrial Control System
♦ AV Equip & Rental business
♦ Simulation Application
♦ 3D Visualisation /360 Deg Walkthrough
♦ Interactive touch table
♦ Large Corporates
