27 inch touch screen monitor With Infrared IR touch panel
Specification:
| General | |
| Model | COT270-IPK02 |
| Series | Dust-proof and metal frame |

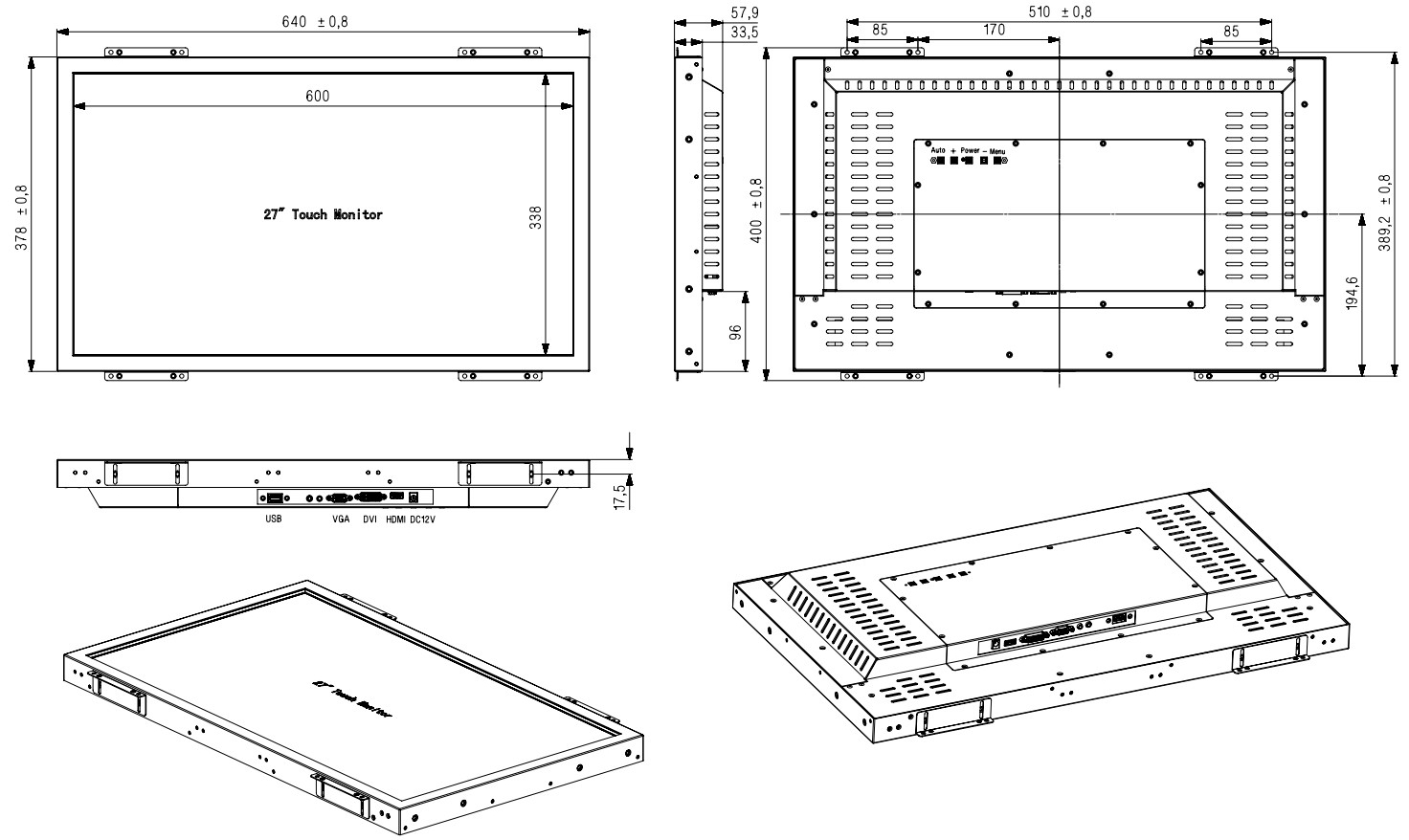

| Monitor Dimensions | Width: 640mm Height: 378mm Depth:57.9mm |
| LCD Type | 27＂Active matrix TFT-LCD |
| Video Input | VGA and DVI |
| OSD controls | Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Power Supply | Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts at 4 amps max |
| Mount Interface | 1)VESA 75mm and 100mm
2)Mount bracket, horizontal or vertical |
| LCD Specification | |
| Active Area(mm) | 597.6(H)×336.15(V) |
| Resolution | 1920×1080@75Hz |
| Dot Pitch(mm) | 0.31125×0.31125 |
| Nominal Input Voltage VDD | +5.0V(Typ) |
| Viewing angle (v/h) | 89°/89° |
| Contrast | 3000:1 |
| Luminance(cd/m2) | 300 |
| Response Time(Rising/Falling) | 12ms |
| Support Color | 16.7M colors |
| Backlight MTBF(hr) | 30000 |
| Touchscreen Specification | |
| Type | Cjtouch Infrared(IR) touch screen |
| Resolution | 4096*4096 |
| Light Transmission | 92% |
| Touch Life Cycle | 50 millions |
| Touch Response time | 8ms |
| Touch System Interface | USB interface |
| Power consumption | +5V@80mA |
| External AC Power Adapter | |
| Output | DC 12V /4A |
| Input | 100-240 VAC, 50-60 Hz |
| MTBF | 50000 hr at 25°C |
| Environment | |
| Operating Temp. | 0～50°C |
| Storage Temp. | -20～60°C |
| Operating RH: | 20%～80% |
| Storage RH: | 10%～90% |
Components:
USB Cable 180cm*1 Pcs,
VGA Cable 180cm*1 Pcs,
Power Cord with Switching Adapter *1 Pcs,
Bracket*2 Pcs.
Applications:
♦ Information Kiosks
♦ Gaming Machine, Lottery , POS, ATM and Museum Library
♦ Government projects and 4S Shop
♦ Electronic catalogs
♦ Computer-based traning
♦ Eductioin and Hospital Healthcare
♦ Digital Signage Advertisement
♦ Industrial Control System
♦ AV Equip & Rental business
♦ Simulation Application
♦ 3D Visualisation /360 Deg Walkthrough
♦ Interactive touch table
♦ Large Corporates
FAQ
1. How much thickness do you usually use for touch screens?
Usually 1-6mm. Other thickness sizes, we can customize according to your needs.
2. Who we are?
We are based in Dongguan ,Guangdong, China, start from 2011, we Sell to North America(35.00%), Western Europe(30.00%), Southern Europe(10.00%), Mid East(10.00%), Oceania(10.00%), Eastern Europe(5.00%). There are total about 11-50 people in our office.
