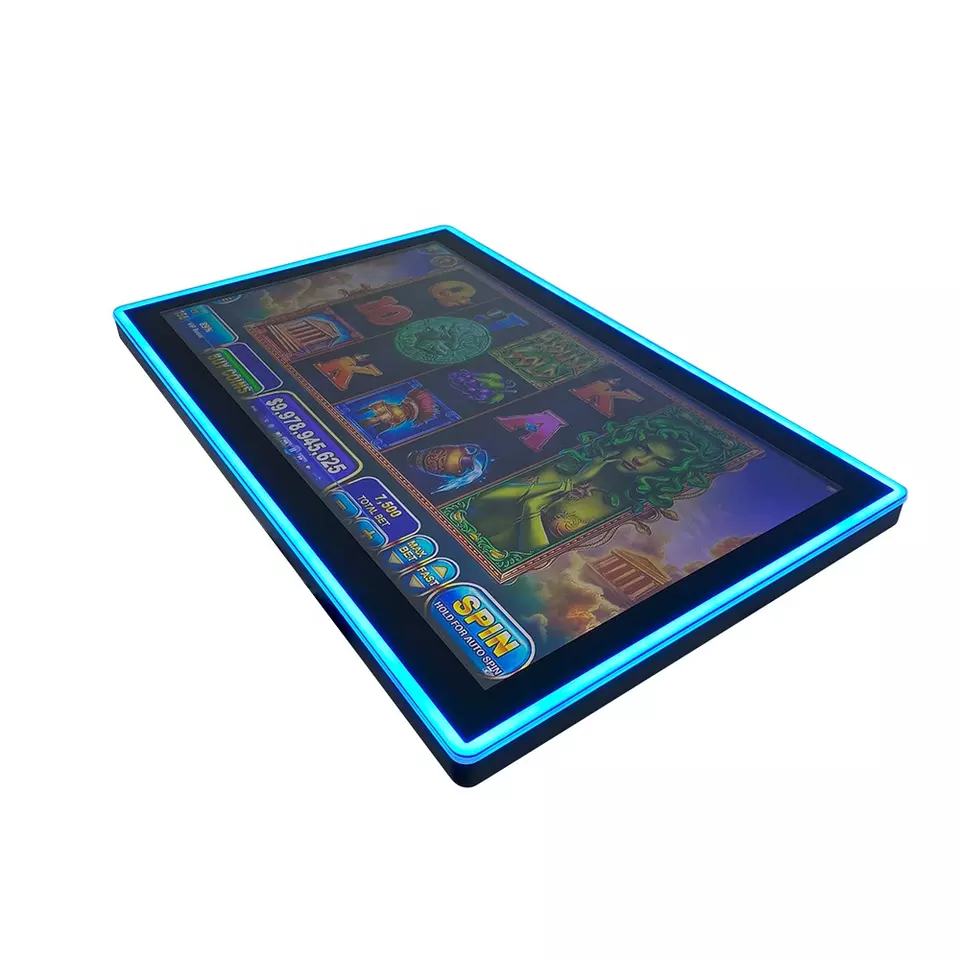

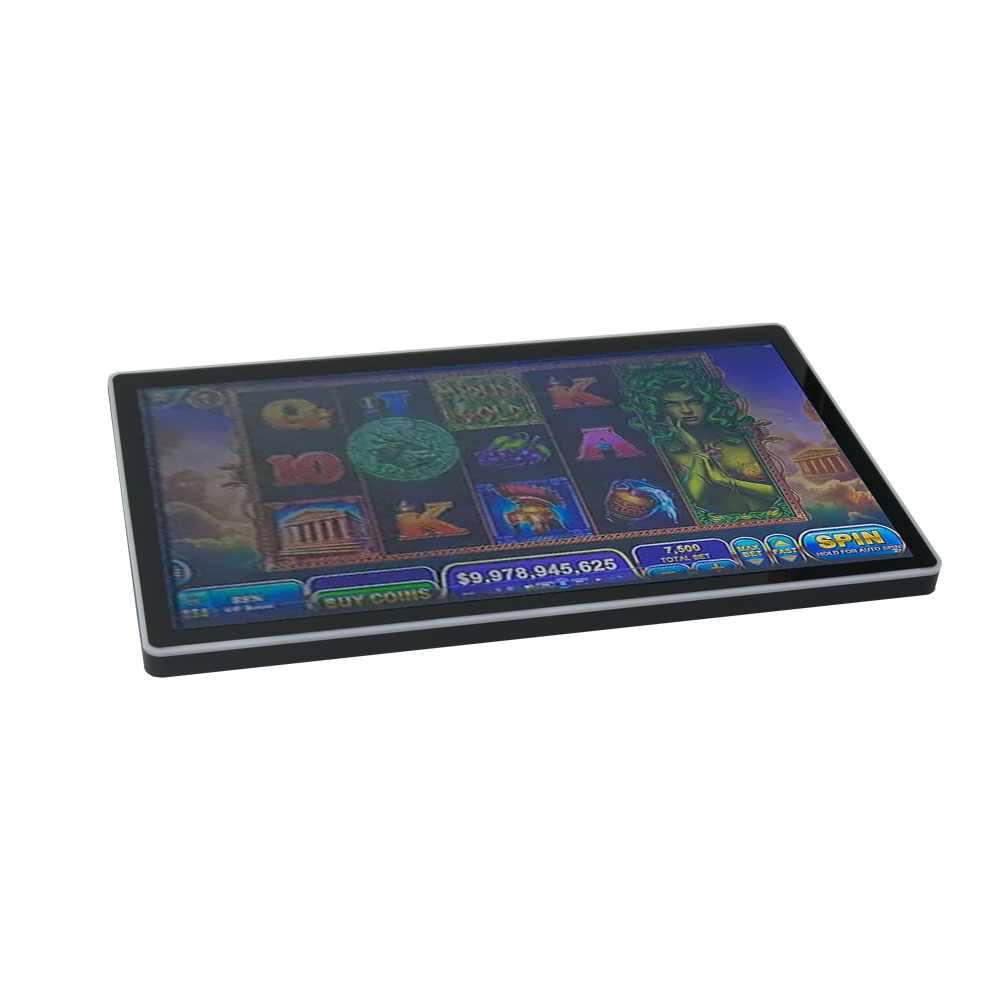

32 inch monitor touch screen LED-Light PCAP monitors

· Super slim black boarder,Extreme game experience

· Rigid high-quality PCB-mounted LEDs, no adhesive strips, no hotspots, no dark corners

· True-flat, black closed-frame designs ·True-flat, black closed-frame designs

· FHD 1920×1080, WVA 178x 178 for landscape or portrait usage

· Dual-line LEDs in Addressable version

· 10-touch PCAP behind 3mm tempered glass

Send email to us

Product Detail

Display Specifications
Characteristic	Value		Comment
LCD Size/Type	32"a-Si IEILCD
spect Ratio	16:9
Active Area	Horizontal	698.4mm
	Vertical	392.85mm
Pixel	Horizontal	0.36375
	Vertical	0.36375
Panel Resolution	1920(RGB1080(FHD][6OHz)		Native
Display Color	16.7Million		6-bits+Hi-ERC
Contrast Ratio	1200:1		Typical
Brightness	400 nits		Typical
Response lime	8ms		Typical
Viewing Angle	Horizontal	178	Typical 89/89/89/89 (Min.)(CR≥10)
	vertiral	178
Video Signal Input	vGAand DVIand HDMI
Characteristic	Value		Comment
Physical Spedfications

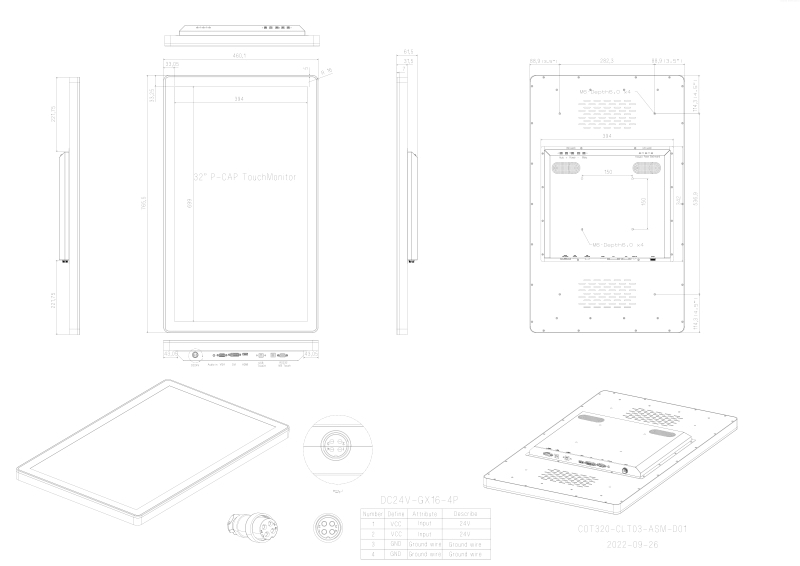

Dimensions	Width	765.5mm
	Height	460.1 mm
	Depth	61.5 mm
Electrical Specifications
Power Supply	AC220V		Power Adapter Included
	100-240 VAC,50-6OHz		Plug Input
Power Consumption	Operating	38w	Typical
	Sleep	3w
	off	1w
Touch Screen Spedfications
Toudh Technologv		Project Capacitive Touch Screen 10Touch Point
Touch lnterface		uSB(Type B)
os Supported	Plugand Play	WindowsAll(HID),Linux(HID)(Android Option)
Driver		Driver Offered
Environmental Specifications
Condition		Specification
temperature	operating	0°C+50℃
	Storage	-20℃~+60℃
Humidity	perating	20%~80%
	Storage	10%~90%
MTBF		30000 Hrs at 25℃
