OEM EXW 22 inch Factory 10 Touch Points Transparent Glass SAW Touch Screen Panel

Short Description:

Industrial grade single touch
3/4/6mm pure glass optional
Support Win/Linux/Android operating system
USB and RS232 Controller optional
Touch force adjustable
Durability, deep scratch-resistance, long life-span

Product Detail

Product Tags

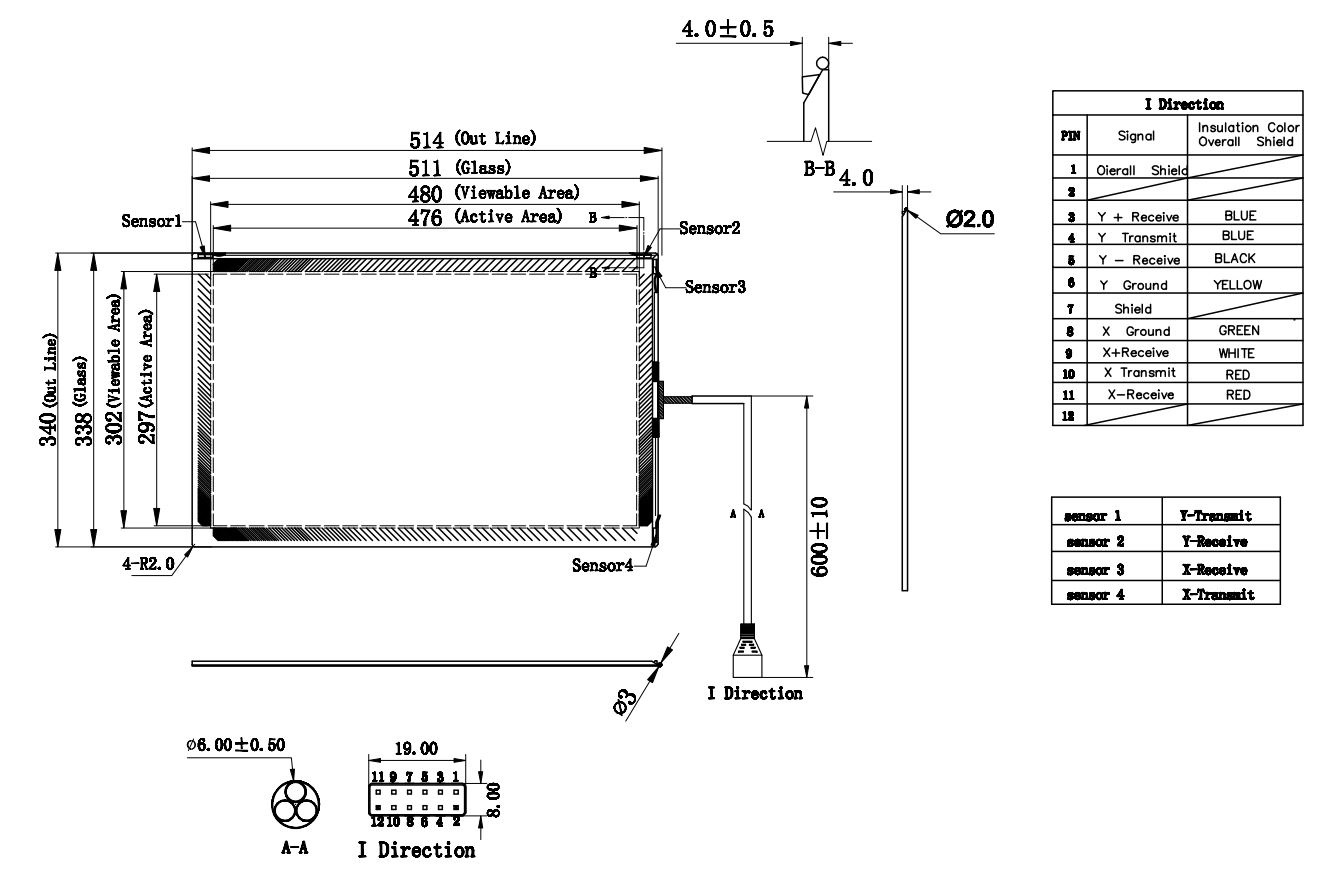

22 inch SAW Touch Panel specification :

Technology	Surface Acoustic Wave(SAW)
Sizes	7” to 24” (extending)
Resolution	4096 x 4096 ,Z-axis 256
Material	Pure glass(Vandal-proof ,Anti-glare can optional)
Transducer position	Glass back
Accuracy	< 2mm
Light Transmission	>92% /ASTM
Touch Force	30g
Durability	Scratch-free; More than 50,000,000 touches in one location without failure.
Surface Hardness	Mohs' 7
Multi-touch	Optional , software support
Operating Temp.	-10°C to +60°C
Storage Temp.	-20°C to +70°C
Humidity	10%-90% RH / 40°C,
Altitude	3800m
Parts	Connect cable,Double-sided adhesive, dustproof strip
Certificates	CE, FCC, RoHS

https://www.cjtouch.com/oem-exw-22-inch-factory-10-touch-points-transparent-glass-saw-touch-screen-panel-product/

Applications:

♦ Information Kiosks
♦ Gaming Machine, Lottery , POS, ATM and Museum Library
♦ Government projects and 4S Shop
♦ Electronic catalogs
♦ Computer-based traning
♦ Eductioin and Hospital Healthcare
♦ Digital Signage Advertisement

♦ Industrial Control System
♦ AV Equip & Rental business
♦ Simulation Application
♦ 3D Visualisation /360 Deg Walkthrough
♦ Interactive touch table
♦ Large Corporates
