Economic IP65 Flat 19 Inch SAW Touch Screen Monitor for POS System Terminal DC 12V LCD Touch Display

Short Description:

1) LCD panel with wide temperature can work 24 hours.
2) Long product cycle time – housing is controlled by CJTOUCH specification.
3) Customizable.
4) High quality panel with high brightness, high contrast and wide viewing angle.

Product Detail

Product Tags

19 inch SAW Touch Monitor specification :

Model	COT190E-AWF02
Series	Water-proof and Compact

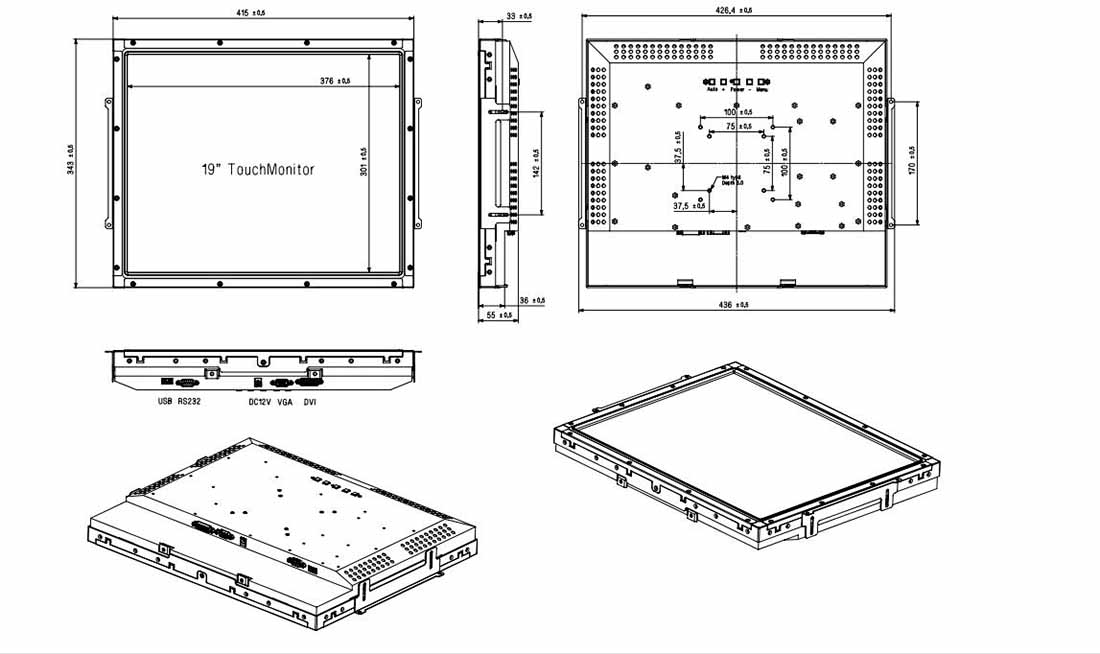

Monitor Dimensions	Width: 415mm Height: 343mm Depth: 54.2mm
Weight(N.W/G.W)	6Kg / 8Kg (Approx.)
LCD Type	19"SXGA Color TFT-LCD
Video Input	DVI and VGA
Recommend Resolution	1280×1024@75Hz
OSD controls	Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Power Supply	Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts at 4 amps max
Mount Interface	1)VESA 75mm and 100mm2)Mount bracket, horizontal or vertical
Regular Warranty	3 years for SAW Sensor; 3 years for controller; 1 year for LCD
Agency Approval	FCC,CE

2.LCD specs

Active Area(mm)	376.320(H)×301.060(V)
Resolution	1280×1024@75Hz
Dot Pitch(mm)	0.294×0.294
Nominal Input Voltage VDD	+5.0V(Typ)
Viewing angle (v/h)	80°/85°
Contrast	1000:1
Luminance(cd/m2)	250
Response Time(Rising/Falling)	3.6s/1.4s
Support Color	16.7M colors
Backlight MTBF(hr)	30000
NOTE:The LCD Specification will change follow the relevant LCD panel brand and model

3.Touch screen

Type	Cjtouch Surface Acoustic Wave(SAW)
Resolution	4096*4096
Light Transmission	92%
Touch Life Cycle	50 millions
Support operate system	Windows,Linux ,Android etc.
Touch System Interface	RS-232 and USB interface
Power consumption	+5V@80mA

https://www.cjtouch.com/economic-ip65-flat-19-inch-saw-touch-screen-monitor-for-pos-system-terminal-dc-12v-lcd-touch-display-product/

1pc in one sample carton
2pcs in one carton
EPE pckaging inside
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Applications:

♦ Information Kiosks
♦ Gaming Machine, Lottery , POS, ATM and Museum Library
♦ Government projects and 4S Shop
♦ Electronic catalogs
♦ Computer-based traning
♦ Eductioin and Hospital Healthcare
♦ Digital Signage Advertisement

♦ Industrial Control System
♦ AV Equip & Rental business
♦ Simulation Application
♦ 3D Visualisation /360 Deg Walkthrough
♦ Interactive touch table
♦ Large Corporates

Company Profile

Founded in 2011. By putting the customer’s interest first, CJTOUCH consistently offers exceptional customer experience and satisfaction through its wide variety of touch technologies and solutions including All-in-One touch systems.

CJTOUCH makes available advanced touch technology at a sensible price for its clientele. CJTOUCH further adds unbeatable value through customization to meet particular needs when required. The versatility of CJTOUCH’s touch products is evident from their presence in varying industries such as Gaming, Kiosks, POS, Banking, HMI, Healthcare and Public Transportation.
