8 inch Waterproof High brightness Outdoor Touch screen Monitor

Short Description:

This is a touchmonitor using industrial grade LED/LCD, with 1000 nits luminance, ultra-thin body design, high resolution display, and excellent multi-touch interactive experience. Compared to the average consumer TV or monitor, it is industrial-grade high performance and professional design is better suited for outdoor application even under strong light.


Product Detail

Product Tags

Specification:

General
Model COT080-CFF02-1000
Series High brightness and waterproof
Monitor Dimensions Width: 208.5mm Height: 166.5mm Depth: 45mm
LCD Type 8” Active matrix TFT-LCD
Video Input VGA and HDMI
OSD controls Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Power Supply Type: External brick
Input (line) voltage: 100-240 VAC, 50-60 Hz
Output voltage/current: 12 volts at 4 amps max
Mount Interface 1)VESA 75mm

2)Mount bracket, horizontal or vertical

LCD Specification
Active Area(mm) 162(W) × 121.5(H) mm
Resolution 800×600 @60Hz
Nominal Input Voltage VDD +3.3V(Typ)
Viewing angle (v/h) 70/70/60/70(Typ.)(CR≥10) (Top/Button/Left/Right)
Contrast 800:1
Luminance(cd/m2) 1000
Response Time(Rising) 20msec
Support Color 16.7M Colors
Backlight MTBF(hr) Min 20000 hrs
Touchscreen Specification
Type Cjtouch Projected Capacitive touch screen
Multi touch 5points touch
Touch Life Cycle 10 millions
Touch Response time 8ms
Touch System Interface USB interface
Power consumption +5V@80mA
External AC Power Adapter
Output DC 12V /4A
Input 100-240 VAC, 50-60 Hz
MTBF 50000 hr at 25°C
Environment
Operating Temp. -20~70°C
Storage Temp. -30~80°C
Operating RH: 20%~80%
Storage RH: 10%~90%
2
5
7

Components:

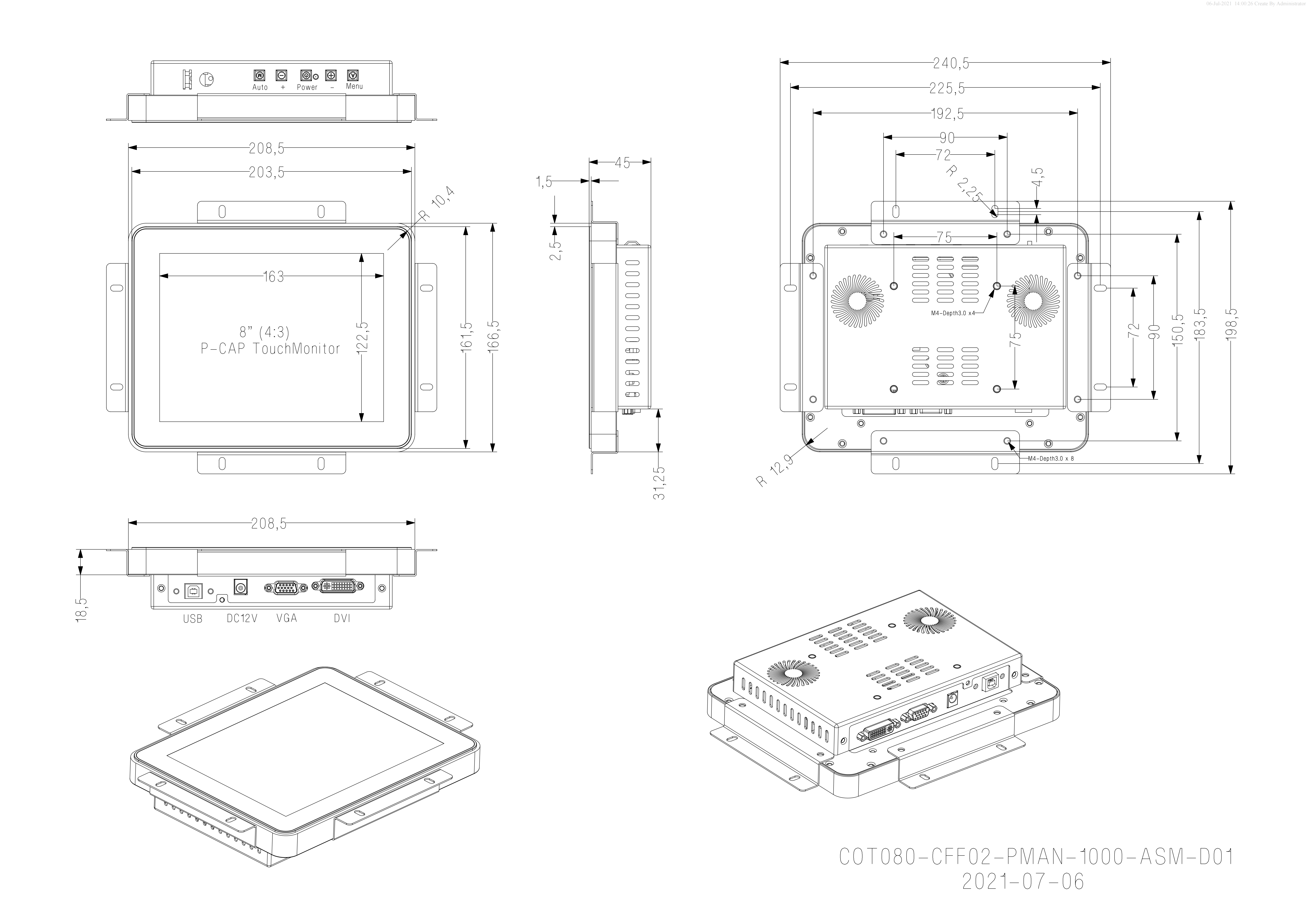

COT080-CFF02-1000-ASM-D01-20217614025_00

USB Cable 180cm*1 Pcs,

VGA Cable 180cm*1 Pcs,

Power Cord with Switching Adapter *1 Pcs,

Bracket*2 Pcs.

https://www.cjtouch.com/19-inch-ip65-waterproof-infrared-pc-monitor-touch-screen-product/

Applications:

https://www.cjtouch.com/

♦ Information Kiosks
♦ Gaming Machine, Lottery , POS, ATM and Museum Library
♦ Government projects and 4S Shop
♦ Electronic catalogs
♦ Computer-based traning
♦ Eductioin and Hospital Healthcare
♦ Digital Signage Advertisement

♦ Industrial Control System
♦ AV Equip & Rental business
♦ Simulation Application
♦ 3D Visualisation /360 Deg Walkthrough
♦ Interactive touch table
♦ Large Corporates

https://www.cjtouch.com/
https://www.cjtouch.com/
https://www.cjtouch.com/

Company Profile

CJTOUCH makes available advanced touch technology at a sensible price for its clientele. CJTOUCH further adds unbeatable value through customization to meet particular needs when required. The versatility of CJTOUCH’s touch products is evident from their presence in varying industries such as Gaming, Kiosks, POS, Banking, HMI, Healthcare and Public Transportation.
